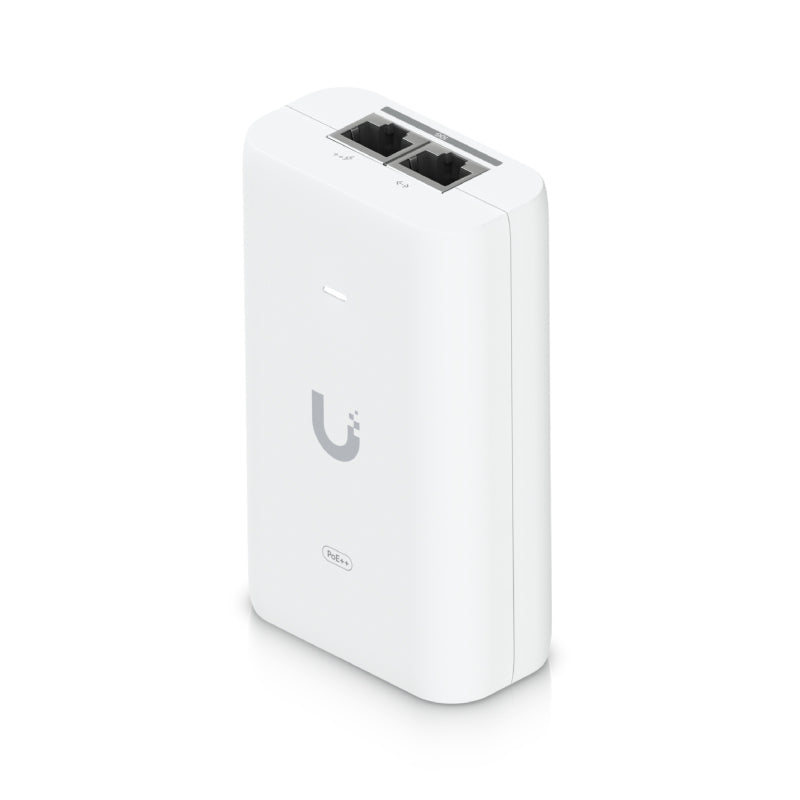

Ubiquiti UniFi 10G PoE++ Adapter (60W)

Ubiquiti UniFi 10G PoE++ Adapter (60W) The UACC-PoE++-10G is an adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection. Features Delivers up to 60W of PoE++ Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE++ output LED indicator for status monitoring Compatibility: E7, E7-Campus, E7-Audience Details Product Code UACC-PoE++-10G Dimensions 106 x 63 x 34 mm Weight 210 g Output Voltage 54V DC @ 1.12A LAN Activity Indicator No Gigabit LAN port Yes, up to 10 GbE Remote Reset Capability No Reset Button No Rated Voltage 100—240V AC @ 50/60Hz Input Current 1.5A max.. 5% 2-pair Powering No 4-pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) Data In / PoE RJ45 shielded socket Surge Protection Difference and common mode Clamping Protection 11V data, 60V power Maximum Surge Discharge 1500A (8/20 ?s) power Peak Pulse Current 36A (10/1000 ?s) data Shunt Capacitance <5 pF data Response Time <1 ns Maximum PoE+ Wattage per Port by PSE 60W Ambient Operating Temperature 0 to 40° C Storage Temperature - Ambient Operating Humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, RoHS NDAA Compliant Yes s Support Go Wireless Help Centre Solutions Details Power Cord 3 Pin Clover Lead

Key features

• 30 to 70°C
• Inrush Current <150A peak @ 230V AC Efficiency >88% Output Ripple 1% max
• Switching Frequency 65 kHz Line Regulation ?
• 2% Load Regulation ?
