Ubiquiti UniFi 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection

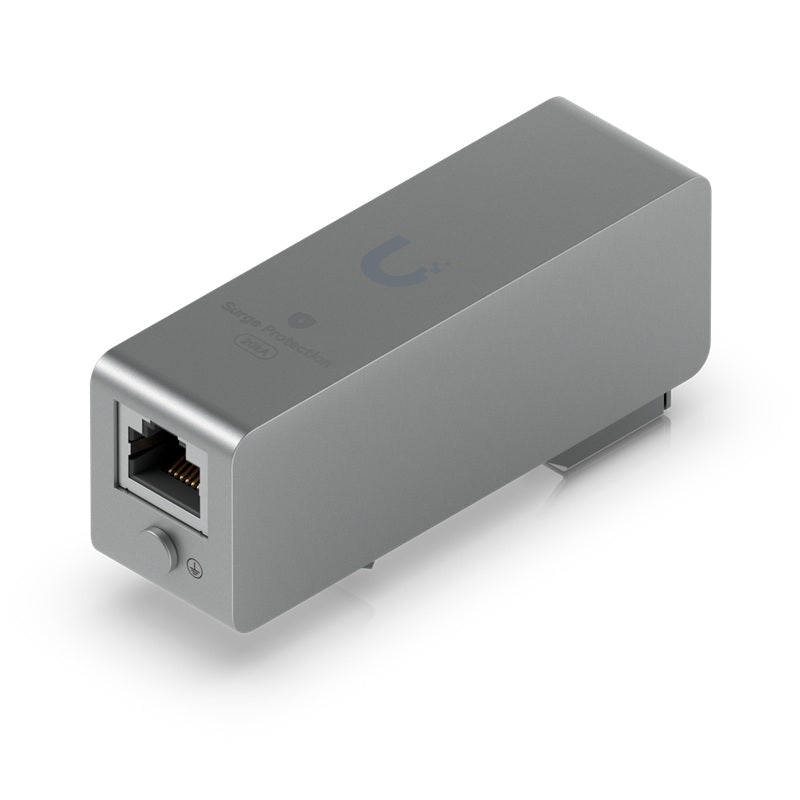

Ubiquiti UniFi 10 GbE PoE++ Wall/DIN Mountable Ethernet Surge Protection

UACC-ETH-SP-DIN

$71.00 NZD
$71.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UniFi Ethernet Surge Protection, Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation
Ubiquiti UniFi Ethernet Surge Protection (UACC-ETH-SP-DIN). Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.

Features
  • Compatible with 10 GbE networks
  • supports up to PoE++ Passthrough
  • 20kA Surge Discharge
  • Wall/DIN rail mount
  • Multiple grounding points
Details
Manufacturer's Code UACC-ETH-SP-DIN
Dimensions 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
Weight 74 g (2.6 oz)
Enclosure Material Polycarbonate, SGCC steel
Networking Interface (2) RJ45 female connectors
DC Spark-Over Voltage 90V @ 100V/s
Max. Impulse Spark-Over Voltage 600V @ 1kV/µs
Discharge Current 20kA
Insulation Max. Resistance: 1G ohm @ 50V
Max. Capacitance 1.0 pF @ 1 MHz
Data Line Protection Up to 10 Gbps
PoE support Yes (up to PoE++)
ESD/EMP Protection Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature -40° to +80° C (-40° to 176° F)
Ambient Operating Humidity 10 to 90% noncondensing
Details
Mounting Hardware Wall/DIN rail mount included
