Ubiquiti

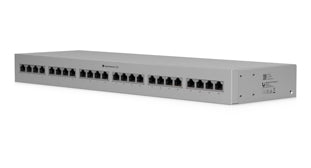

Ubiquiti UniFi 10 GbE PoE++ Ethernet Surge Protection 24-Port Rack Mount Indoor Panel
Ubiquiti UniFi 10 GbE PoE++ Ethernet Surge Protection 24-Port Rack Mount Indoor Panel
SKU:UACC-ETH-SP-Panel-24
Regular price
$855.00 NZD
Regular price
Sale price
$855.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Ubiquiti UniFi 10 GbE PoE++ Ethernet Surge Protection 24-Port Rack Mount Indoor Panel
Ubiquiti UniFi Ethernet Surge Protection 24-Port, Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
Features
- Compatible with 10 GbE networks
- supports up to PoE++ Passthrough
- 24-Port integrated
- 1U Rack-mount design
- 20kA Surge Discharge per port
| Details | |
|---|---|
| Manufacturer's Code | UACC-ETH-SP-Panel-24 |
| Dimensions | 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7") |
| Weight | 2 kg (4.4 lb) |
| Enclosure Material | SGCC steel |
| Networking Interface | (48) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE support | Yes - up to PoE++ |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Details | |
|---|---|
| Mounting Hardware | Rack mount kit included |
