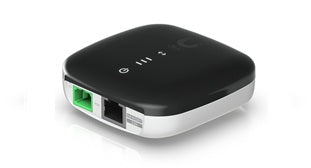

Ubiquiti UISP WaveFiber ONU GPON Optical Network Unit With 2.5 GbE Support

Ubiquiti UISP WaveFiber ONU GPON Optical Network Unit With 2.5 GbE Support

Wave-Fiber-ONU

$109.00 NZD
$109.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UISP WaveFiber ONU, GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km
The Ubiquiti UISP WaveFiber ONU is a GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Features
  • Compatibility: UISP-FIBER-OLT-XGS, UF-OLT, UF-OLT-4
  • 1.2 Gbps uplink, 2.5 Gbps downlink, up to 20 km
  • (1) SC/APC, ITU-G.984 GPON WAN port, (1) 1/2.5 GbE RJ45 LAN port
  • Desktop or Wall mountable
Details
Manufacturer's Code Wave-Fiber-ONU
Dimensions 76.5 x 76.5 x 26.4 mm (3 x 3 x 1")
Weight 78 g (2.8 oz)
Enclosure material Polycarbonate
Networking interface (1) SC/APC, ITU-G.984 GPON WAN port, (1) 1/2.5 GbE RJ45 LAN port
Management interface Ethernet in-band, PON
Power method PoE, 0.3A
Power supply 24V passive PoE 2-pair (4, 5+; 7, 8-)
supported voltage range 20–28V DC
Max. power consumption 5W
Total non-blocking line rate Downstream: 2.488 Gbps, Upstream: 1.244 Gbps
Normal range of optical module TX 1.5 to 5 dBm, RX -8 to -28 dBm
LEDs PON status, Ethernet, Power
Operating wavelength TX: 1310 nm, RX: 1490 nm
Line code Scrambled NRZ
Optical interface nominal bit rate Downstream: 2488.32 Mbit/s, Upstream: 1244.16 Mbit/s
Physical reach 20 km
Mounting Desktop, wall
Button (1) Factory reset
Ambient operating temperature -15 to 45° C (5 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Details
Power Supply Clover Lead Power Cord
Power Injector 24V 0.3A PoE Injector
