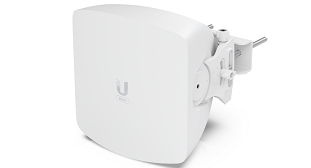

Ubiquiti UISP Wave 60GHz Access Point with 5GHz Backup Built In

... It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app. Features 5 GHz backup radio supported stations and distances: Wave Long-Range: up to 8 km, Wave Nano: up to 5 km WAN Ports: (1) 10G SFP+, (1) 2.5GbE 15 client capacity 30 degree sector coverage Integrated GPS antenna and Bluetooth Link planning support via the ISP Design Center Details Manufacturer's Code WAVE-AP Processor Quad ARM® Cortex®-A53 cores at 1.4 GHz Memory DDR3L 512 MB Networking interface (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10), * Active only when SFP+ port is down. Max. power consumption 24W Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only Power supply 48V DC, 0.65A 2.5GbE PoE adapter (included) supported voltage range 44–54V DC, 22–27V DC GPS Yes Button Factory reset LEDs Power, Ethernet, GPS Operating mode PtMP access point Ubiquiti specific features Wave technology Services UISP, ping watchdog, NTP client, SNMP Antenna alignment, discovery utility, ping, trace route, speed test Network Bridge mode Application requirements UISP: Version 1.5.7 and later Total throughput 5.4 Gbps (2.7 Gbps duplex) supported clients count 15 Max. range Connecting to a Wave Pro: up to 8 km, Connecting to a Wave Long-Range: up to 8 km, Connecting to a Wave Nano: up to 5 km Encryption WPA2-PSK (AES) Operating frequency 57–71 GHz Channel bandwidth 2160, 1080 MHz Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz Modulation 16QAM, QPSK Antenna gain 24 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 30°, Elevation: 3 dB 3° Electrical downtilt 0° Back-Up WiFi standard 802.11ax (WiFi 6); 20, 40, 80 MHz Dimensions 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") Weight 2.3 kg (5.07 lb) Enclosure materials Aluminum alloy, UV stabilized polycarbonate Pole mount diameter 25 to 76 mm (1 to 3") on pipe outer diameter Wind loading 98 N at 200 km/h (22 lbf at 125 mph) Weatherproofing IPX6 Operating temperature - Operating humidity 5 to 95% noncondensing Certifications FCC, IC, CE Manufacturer Website Firmware & Downloads Community Forum Help and Documentation Console Capacity Calculator Case Studies Blogs support Go Wireless Help Centre Solutions Details Included Pole Mount Brackets and 48V DC, 0.65A 2.5GbE PoE adapter Key features 40 to 60° C (-40 to 140° F) Ubiquiti UISP Wave 60GHz Access Point with 5GHz Backup Built In Ubiquiti UISP Wave 60GHz Access Point 60 GHz PtMP access point powered by Wave Technology The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex)
