• Ubiquiti UISP Switch Plus 2.5 GbE PoE switch for ISP Applications
1 1

Ubiquiti

Ubiquiti UISP Switch Plus 2.5 GbE PoE switch for ISP Applications

Ubiquiti UISP Switch Plus 2.5 GbE PoE switch for ISP Applications

UISP-S-Plus

$946.00 NZD
$946.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

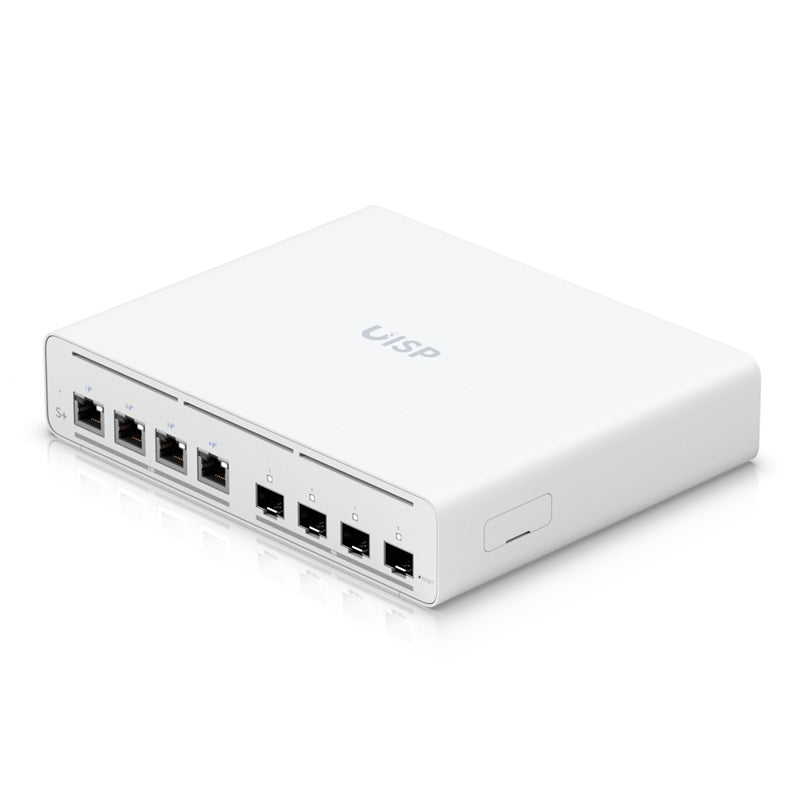

Ubiquiti UISP Switch Plus 2.5 GbE 160W PoE switch for ISP Applications
Ubiquiti UISP Switch Plus 2.5 GbE 160 Watt PoE switch for ISP Applications.

Features
  • (4) 2.5 GbE RJ45 ports with 27V passive PoE output
  • (4) 10G SFP+ ports
  • 160W (27V) total PoE availability, 20W/port (2-pair) / 40W/port (4-pair)
  • Port isolation, speed limiting, and DHCP snooping functionality
  • (1) Power TransPort input for DC redundancy
  • Desk, wall, 1U rack, and outdoor mounting
  • Standalone management through local web interface and UISP Application integration
Details
Manufacturer's Code UISP-S-Plus-AU
Processor Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz
Memory 1 GB DDR4
Onboard flash storage 256 MB NAND
Networking interface (4) 1/2.5 GbE RJ45 LAN ports, (4) 1/10G SFP+ ports
Management interface Ethernet In-band, Bluetooth
Total non-blocking throughput 50 Gbps
Switching capacity 100 Gbps
Forwarding rate 74.4 Mpps
Power method (1) External AC/DC adapter, (1) Power TransPort DC input 27V DC, 7.04A
Power supply 27V DC, 7.04A power adapter (included), supported voltage range 24–28V DC
Max. power consumption 25W (Excluding PoE output.)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
PoE interface (4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4
Total available PoE 160W (With included power adapter.)
Max. passive PoE wattage per port 2-pair mode: 20W/27V DC, 4-pair mode: 40W/27V DC
Passive PoE voltage range 27V DC
System LED Status
RJ45 data ports LED PoE, Speed/link/activity
SFP+ data ports LED Link/activity
Dimensions 210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7")
Weight 1.75 kg (3.9 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Management application UISP
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Details
Power Supply 27VDC, 7.04A power adapter included
Mounting Hardware Wallmount
