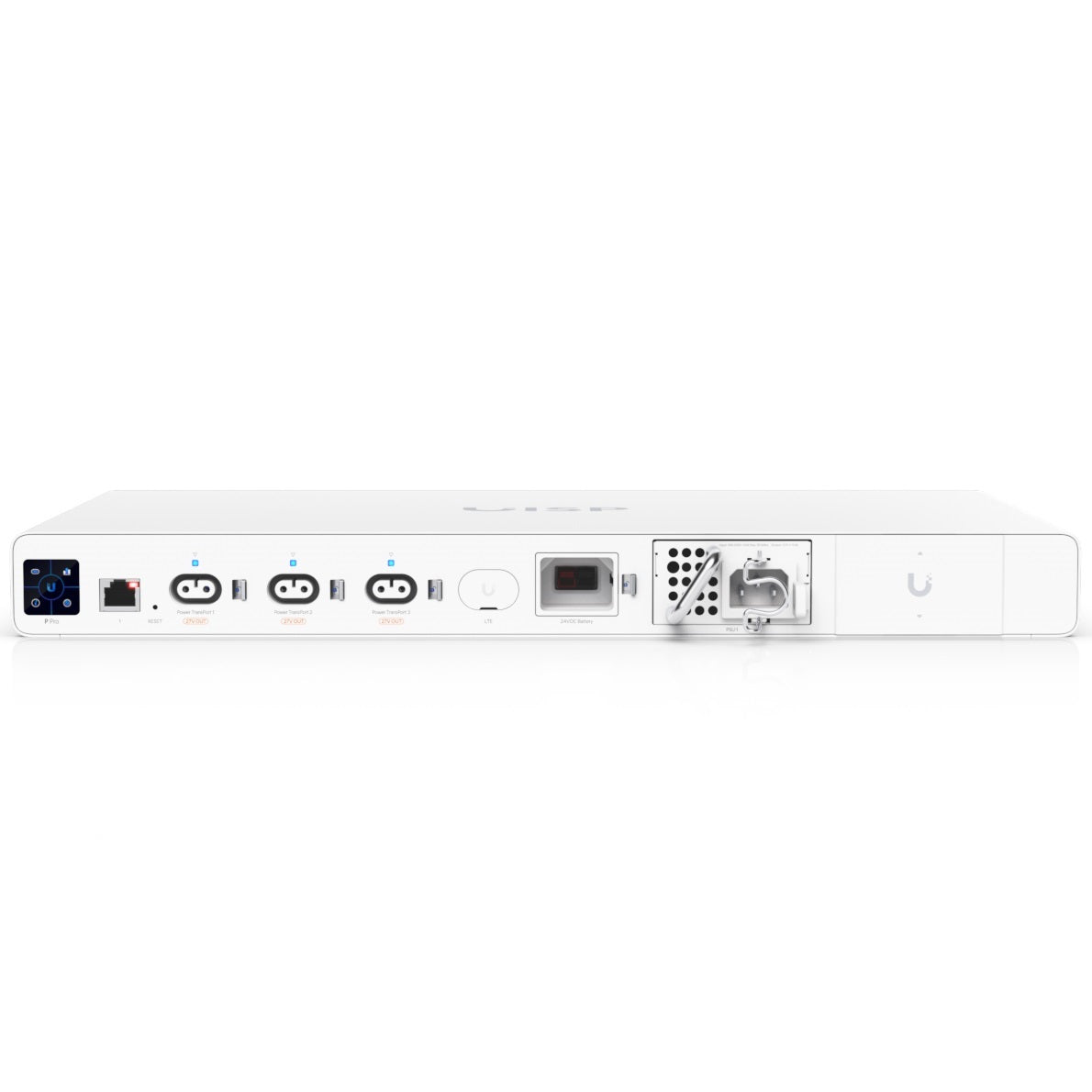

Ubiquiti UISP Power Professional Uninterruptible Power Management System

Ubiquiti UISP Power Professional Uninterruptible Power Management System Ubiquiti UISP Power Professional Uninterruptible power management system designed to support high-capacity WISP deployment sites Features (3) Power TransPort outputs Delivers up to 480W* (27V DC) to supported UISP devices *With (2) power supplies installed. (2) PSU bays with (1) 250W AC/DC Power Supply included (1) DC battery port for an external 24V lead-acid battery (not included) supports SMS-over-LTE (Cat M1) notification Details Manufacturer's Code UISP-P-Pro Networking interface (1) 10/100 MbE RJ45 LAN port Management interface Ethernet In-Band, Bluetooth Power TransPort interface (3) Power TransPort ports [up to 250W (27V DC) output each], Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs Primary power (2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz), (1) PSU included (Additional modules sold separately) Backup power (1) 24V DC, 20.83A lead-acid battery input* (Battery not included) *Connect to a lead-acid battery only... power consumption 3W (Excludes Power TransPort output and battery charger) ESD/EMP protection Air: ±15 kV / Contact: ± 8 kV LCM display 1.3" touchscreen supported models UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro LTE Antenna External (included) SIM Nano-SIM Slot Category Cat M1 Bands US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready), EU: FDD-LTE Bands 1, 3, 8, 20, 28 Notification type SMS (Requires a nano-SIM card from a Cat M1 SMS provider.) LTE Input rating 5V DC, 0.5A Management application UISP: Version 1.4.8 and later Dimensions 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") Weight 4.16 kg (9.2 lb) Enclosure materials SGCC steel, polycarbonate/ABS Ambient operating temperature - Ambient operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC, PTCRB, AT&T support Details Included UISP Power Pro, Power Cable, Battery connection Cable

Key features

• 10 to 50° C (14 to 122° F)
• Using another battery type could be hazardous
• supported voltage range 100 to 240V AC Max
