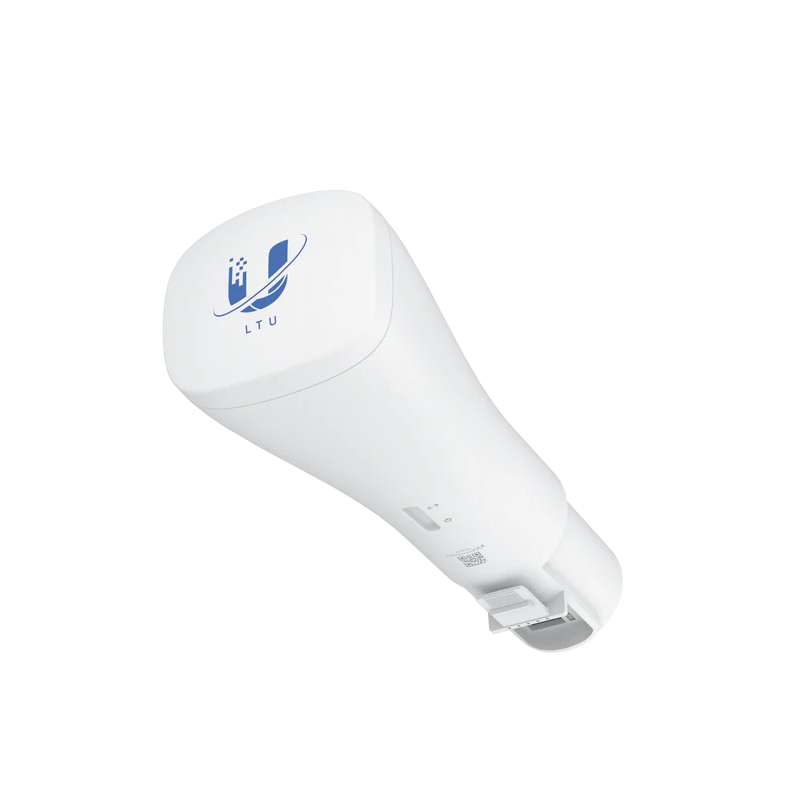

Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2
Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2
SKU:LTU-Instant-5
Regular price
$779.00 NZD
Regular price
Sale price
$779.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2
Ubiquiti UISP LTU Instant 5-pack Convertor Kit for LBE-5AC-GEN2. 5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station and PTP mode.
The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam (LBE-5AC-GEN2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP web application or mobile app.
The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam (LBE-5AC-GEN2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 550 Mbps of real TCP/IP throughput with its 22dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP web application or mobile app.
Features
- Proprietary Ubiquiti LTU core processor
- Easily integrates with LBE-5AC-GEN2 deployments
- Channel width flexibility (10/20/30/40/50 MHz bandwidth)
- Configuration management from the AP side
- Router mode support
- Frequency splitting
- Quick, Bluetooth-powered setup via the UISP Mobile app
- Also supports PTP Mode
| Details | |
|---|---|
| Manufacturer's Code | LTU-Instant-5 |
| Operating frequency | 5.15 to 5.95 GHz * Dependent on regional regulations.. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
| OS | airOS |
| Modes | PtMP CPE only |
| Management interface | UISP application (web/mobile) |
| Minimum software requirements | A modern web browser or an iOS/Android device |
| Maximum throughput | 550 Mbps |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| Networking interfaces | (1) GbE RJ45 port |
| LEDs | Power/Ethernet |
| RF connections | Internal |
| Max. power consumption | 8.5W |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24VDC, 0.5A Gigabit PoE adapter (included) |
| supported voltage range | 22 to 26VDC |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Dimensions | Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21") |
| Weight | Feed: 215 g (7.58 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Details | |
|---|---|
| Included | (5) feeds and (5) PoE adapters |
