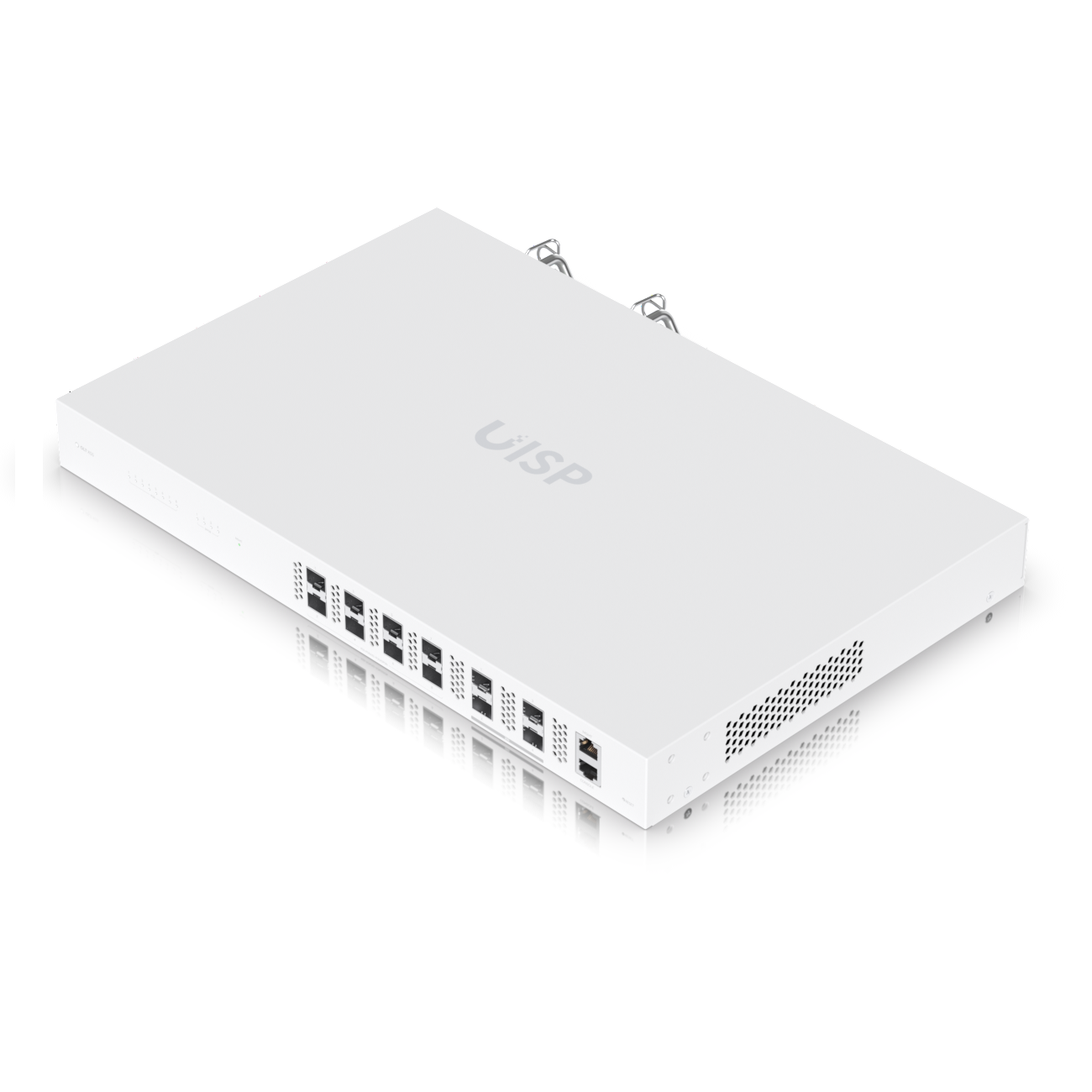

Ubiquiti UISP Fiber XGS/XG/G-PON 8 Port OLT

Ubiquiti UISP Fiber XGS/XG/G-PON 8 Port OLT

UISP-FIBER-OLT-XGS

$8,222.00 NZD
$8,222.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UISP Fiber XGS/XG/G-PON 8 Port OLT Supports 2048 Registered ONUs/ONTs
Ubiquiti UISP Fiber XGS/XG/G-PON 8 Port OLT supports 2048 Registered ONUs/ONTs
Features
  • XGS-PON 10 Gbps bi-directional capacity
  • 2048 Client capacity (8 ports)
  • (4) 25G SFP28 uplink ports
  • 1U rack mount
  • AC/DC power module redundancy support
Details
Manufacturer's Code UISP-FIBER-OLT-XGS
Networking interface (8) XGS/XG/GPON ports, (4) 1/10/25G SFP28 ports*, *The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface Ethernet out-of-band, Ethernet in-band, RJ45 serial console port, Bluetooth
Memory 512 MB DDR3
Onboard flash storage 64 MB NOR + 512 MB NAND
Power method (1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply (2) Hotswap AC/DC PSU
supported voltage range 100–240V AC
Max. power consumption 70W
Button (1) Factory reset
Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight 5.29 kg (11.7 lb)
Enclosure material SGCC steel
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 10 to 95% non-condensing
Certifications E, FCC, IC
Details
Included AC Power Cable and Rack Mount Kit
