Ubiquiti

Ubiquiti UISP Fiber XGS-PON Optical Network Unit

Ubiquiti UISP Fiber XGS-PON Optical Network Unit

UISP-FIBER-XGS

$374.00 NZD
$374.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

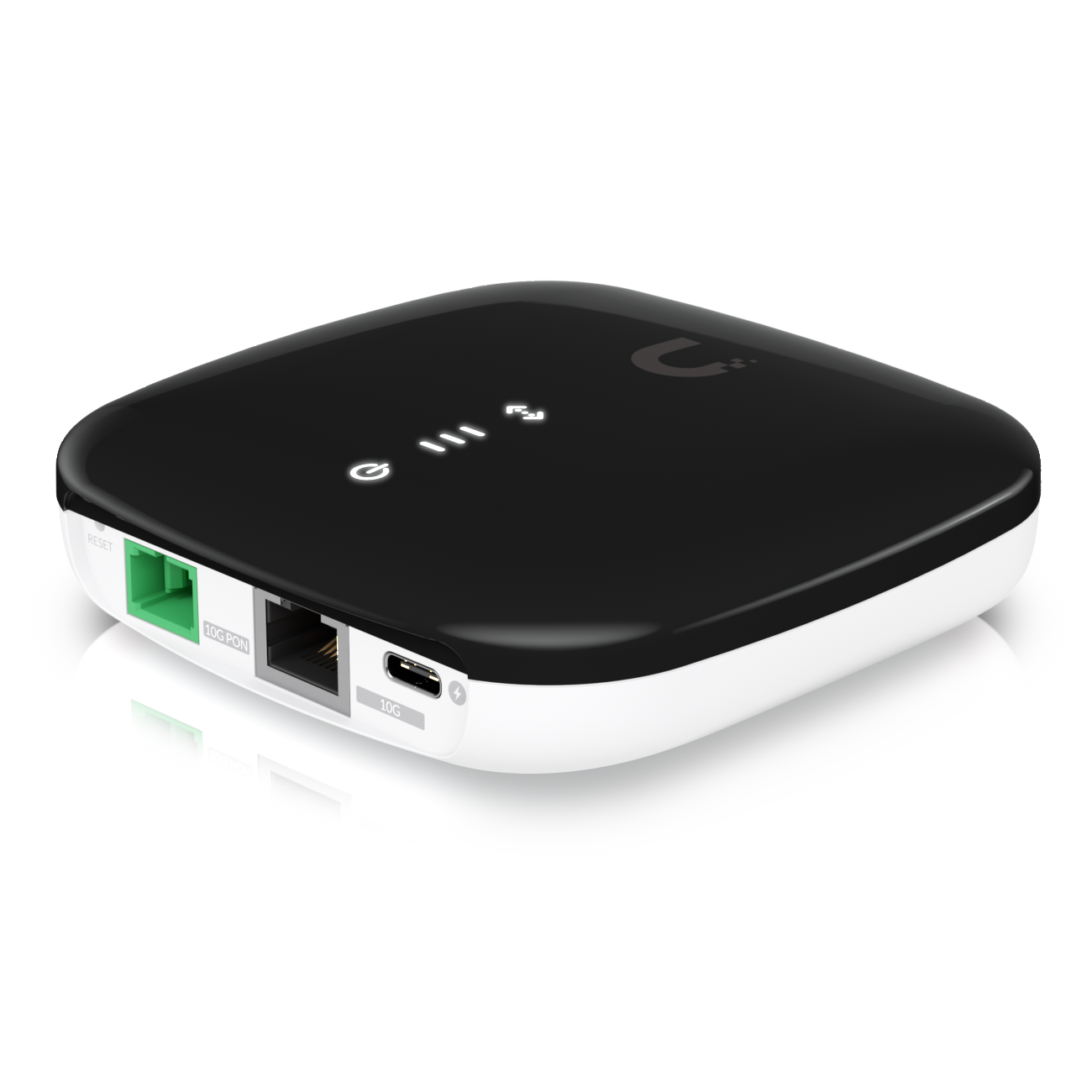

Ubiquiti UISP Fiber XGS-PON Optical Network Unit
Ubiquiti UISP Fiber XGS-PON Optical Network Unit. An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.
Features
  • (1) XGS-PON port
  • (1) 10GbE RJ45 LAN port
  • 20km Range
Details
Manufacturer's Code UISP-FIBER-XG
Operating wavelength TX: 1,270nm, RX: 1,577nm
Line code Scrambled NRZ
Physical reach 20 km
Networking interface (1) SC/APC, ITU-G.9807 XGSPON WAN port, (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports
Management interface Ethernet in-band, PON
Memory 256 MB DDR
Onboard flash storage 32 MB NOR
Max. power consumption 8W
Power method USB-C 5V DC, 3A
Power supply 5V DC, 3A power adapter
supported voltage range 5V DC power adapter
Total non-blocking line rate Downstream: 9.95 Gbit/s, Upstream: 9.95 Gbit/s
Normal TX range of optical module 4 to 9dBm
Normal RX range of optical module -9 to -26dBm
Button (1) Factory reset
Management application UISP: Version 1.5.7 and later
Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight 220 g (0.49 lb)
Enclosure material UV-stabilized polycarbonate
Operating temperature -15 to 45° C (5 to 113° F)
Operating humidity 10 to 95% non-condensing
Certifications CE, FCC, IC
Details
Included 5V 2.4A USB-C Power Supply
