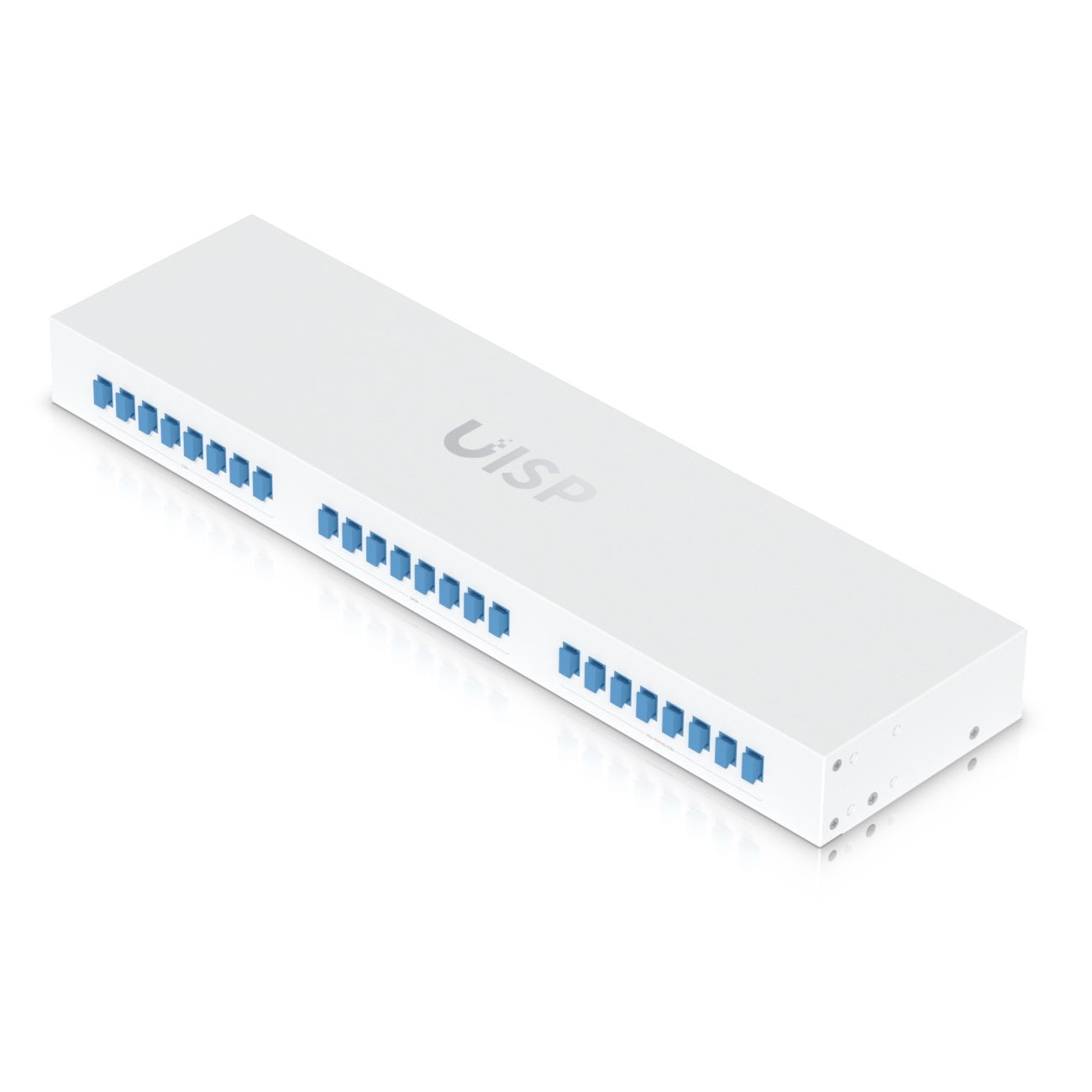

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON

Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON Ubiquiti UISP Fiber Coexistence WDM Filter for XGS/XG-PON and GPON.. Features (24) Connectors 1U Rack mount Details Manufacturer's Code UACC-UF-WDM-XGS Dimensions 442 x 120 x 43.7 mm ( 17.4 x 4.7 x 1.7") Weight 1.8 kg (3.97 lb) Enclosure material Metal Connector type (8) COM (SC/UPC), (8) GPON (SC/UPC), (8) XGS/XG-PON (SC/UPC) GPON - COM port Wavelength range: 1290—1330 nm, 1480—1500 nm; Max... insertion loss: 1dB; Min... polarization dependent loss 0.1 dB Fiber type ITU-T G.657.A1 Single Model Fiber support Details Included Rack Mount kit

Key features

• Wavelength Division Multiplexing module that combines XGS/XG-PON and GPON services into a single fiber distribution system
• insertion loss: 1dB; Min
• isolation: 25dB XGS-PON - COM port Wavelength range: 1260—1280 nm, 1575—1580 nm; Max
• isolation: 25dB Min
• return loss 50 dB Max
