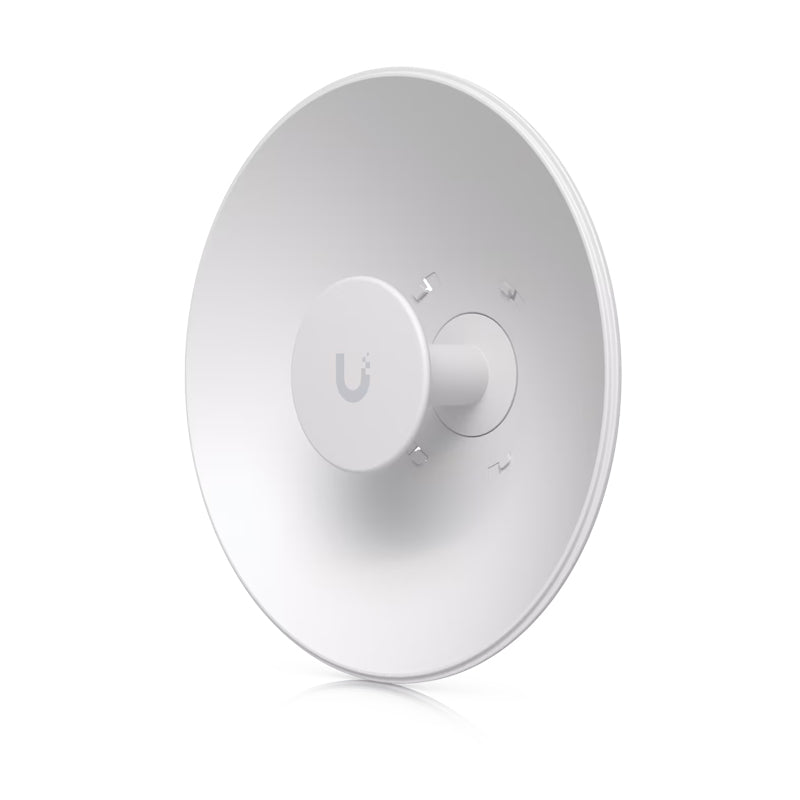

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect

Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect Ubiquiti UISP Dish Mini 5-7 GHz Compact Dish with 26 dBi Gain and Radio Direct Connect.. Features Compatible with Wave-MLO5, AF-5XHD, or RP-5AC-Gen2 5.15 - 6.875 GHz operating frequency range PtP Dish Antenna WaveGuide radio adapter Precision mounting bracket Weatherproof IPX6 rate Details Manufacturer's Code UISP-Dish-Mini Dimensions Antenna dish: Ø420 x 140 mm (Ø25.6 x 7.9"), Antenna dish with Waveguide: Ø420 x 211.3 mm (Ø25.6 x 8.3") Weight Antenna dish: 1.95 kg (4.3 lb), Mount: 1 kg (2.2 lb), Waveguide: 0.45 kg (1 lb) Enclosure Material Antenna dish: Powder-coated galvanized steel, UV-stabilized polycarbonate, Waveguide: Aluminum alloy, UV-stabilized polycarbonate Mount Material Powder-coated galvanized steel, aluminum alloy Wind Survivability Up to 200 km/h (124 mph) Wind Loading 348 N at 200 km/h (78 lbf at 124 mph) Mounting Pole mount, Alignment mounting kit (Included), Mechanical adjustment: ±20° elevation Pole Mount Diameter Ø32–76 mm Weatherproofing IPX6 Frequency Range 5.15 to 6.875 GHz Antenna Gain 26 dBi Beamwidth Azimuth: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB), Elevation: 5.8 to 9° (3 dB) / 7.6 to 12.5° (6 dB) Electrical Downtilt 0° Max. VSWR 2:1 Polarization Dual-Linear Compatibility Wave-MLO5, AF-5XHD, or RP-5AC-Gen2 Cross-Pol Isolation 15 dB NDAA Compliant Yes support Details Mounting Hardware Precision mounting bracket included WaveGuide Radio Adapter Included

Key features

• Point-to-point (PtP) dish antenna that covers a wide operating frequency range
