Ubiquiti

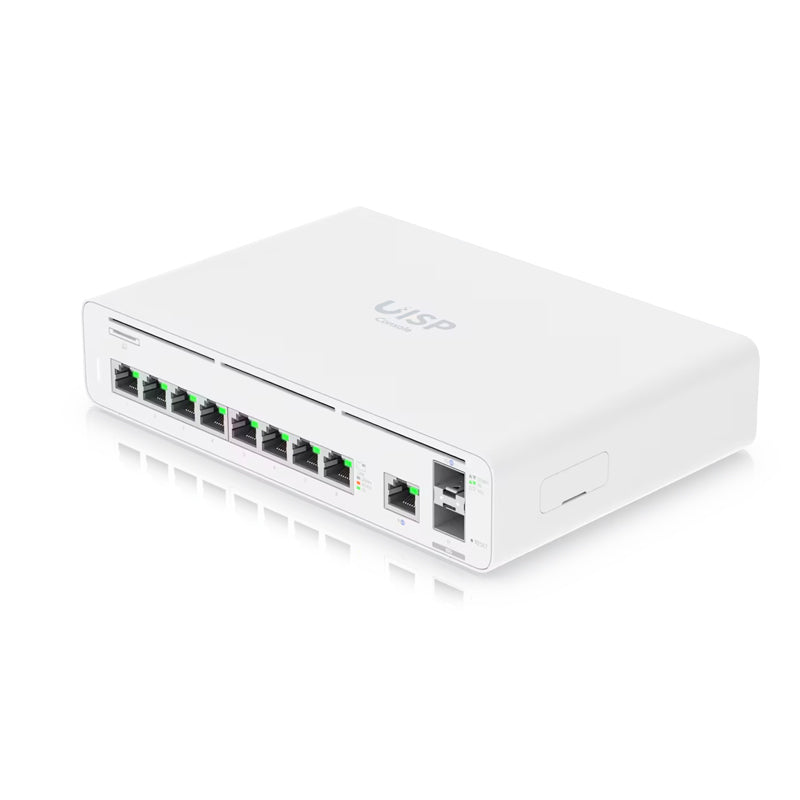

Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway

Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway

UISP-Console

$590.00 NZD
$590.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway Router
Ubiquiti UISP Console with Integrated Switch and Multi-gigabit Ethernet Gateway Router.

UISP Console is a high-performance gateway with (2) ber-ready SFP+ ports and (9) Gigabit RJ45 ports. It natively supports dual-WAN ports: (1) 10G SFP+ and (1) Gigabit RJ45, and has a built-in switch with (8) Gigabit RJ45 ports.

With its pre-installed UISP application, you can centrally monitor and manage all of your UISP devices.
Features
  • (9) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Up to 8,500 Mbps NAT throughput*
  • Powered by an external AC/DC adapter (included)
  • Additional Power TransPort input for DC redundancy
  • 1U rack or wall-mountable (kits included)
Details
Manufacturer's Code UISP-Console
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory 4 GB DDR4
Onboard flash storage 16 GB eMMC
Onboard storage 128 GB SSD
Card slot (1) microSD
Networking interface (8) LAN: GbE RJ45 ports, (1) LAN: 1/10G SFP+ port, (1) WAN: GbE RJ45 port, (1) WAN: 1/10G SFP+ port
Management interface Ethernet In-band, Bluetooth
Power method (1) External AC/DC adapter, (1) Power TransPort DC input 27V DC, 1.5A
Power supply 24V DC, 2.5A power adapter (included)
supported voltage range 24—28V DC
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Dimensions 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7")
Weight 1.5 kg (3.2 lb)
Enclosure materials SGCC steel, polycarbonate
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
