• Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio
1 1

Ubiquiti

Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio

Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio

LBE-5AC-XR

$339.00 NZD
$339.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

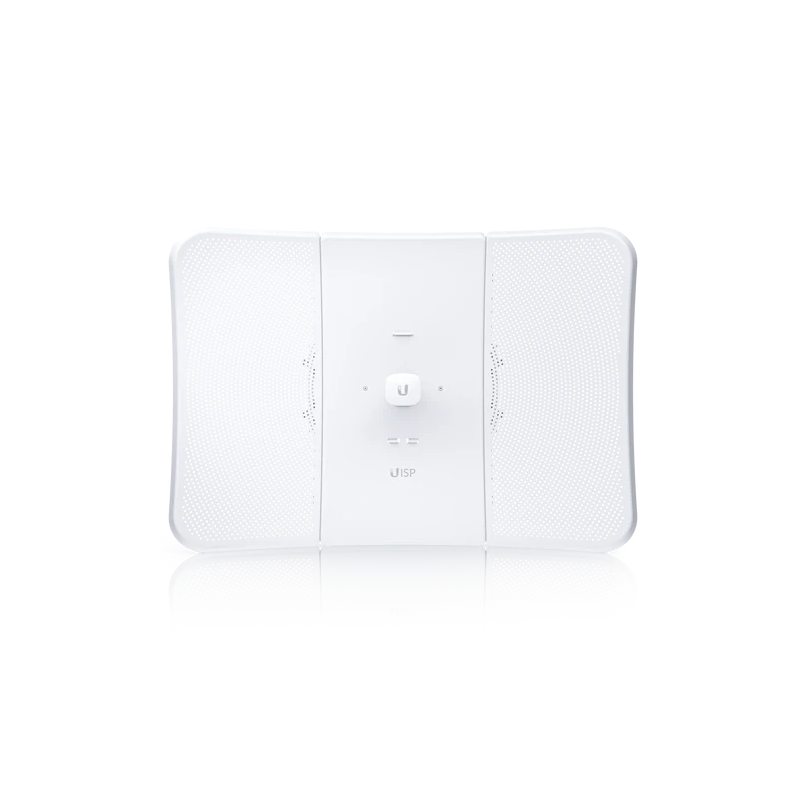

Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio
Ubiquiti UISP airMAX LiteBeam AC 5GHz 29dBi Extreme Range wireless Point to Point CPE/Bridge 450+ Mbps Radio. The airMAX LiteBeam AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.
Features
  • Proprietary airMAX ac chipset
  • Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate
  • High-gain antenna with InnerFeed® technology
  • Establishes high-speed, extremely-long-distance links
  • Integrated GPS
  • Link planning support via ISP Design Center
  • Dedicated management radio for quick device setup via the UISP Mobile app
Details
Manufacturer's Code LBE-5AC-XR
Maximum throughput 450+ Mbps
Encryption WPA2-PSK (AES)
Operating frequency 5.15 to 5.85 GHz - Depends on regulatory region
Max. conducted TX power 25 dBm
Management radio 2400 - 2483.5 MHz
Channel bandwidth 10/20/30/40/50/60/80 MHz
Antenna Gain 29 dBi
Isolation 20 dB
Beamwidth HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt 0°
OS airOS
Modes PtMP, PtP
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView, speed test, alignment, discovery, ping, traceroute, constellation
Management interface Dedicated management radio for quick device setup via the UISP Mobile app, WEB UI
Minimum software requirements Modern Web browser or Android/iOS smartphone
Networking interfaces (1) GbE RJ45 port
Button Factory reset
LEDs Power/ethernet
RF connections Internal
Max. power consumption 7W
Power method Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply 24VDC, 0.5A Gigabit PoE adapter (included)
supported voltage range 22-26VDC
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% non-condensing
Certifications FCC, IC, CE
Details
Power supply 24VDC, 0.5A Gigabit PoE adapter
Pole Mounting System Included
View full details
