Ubiquiti

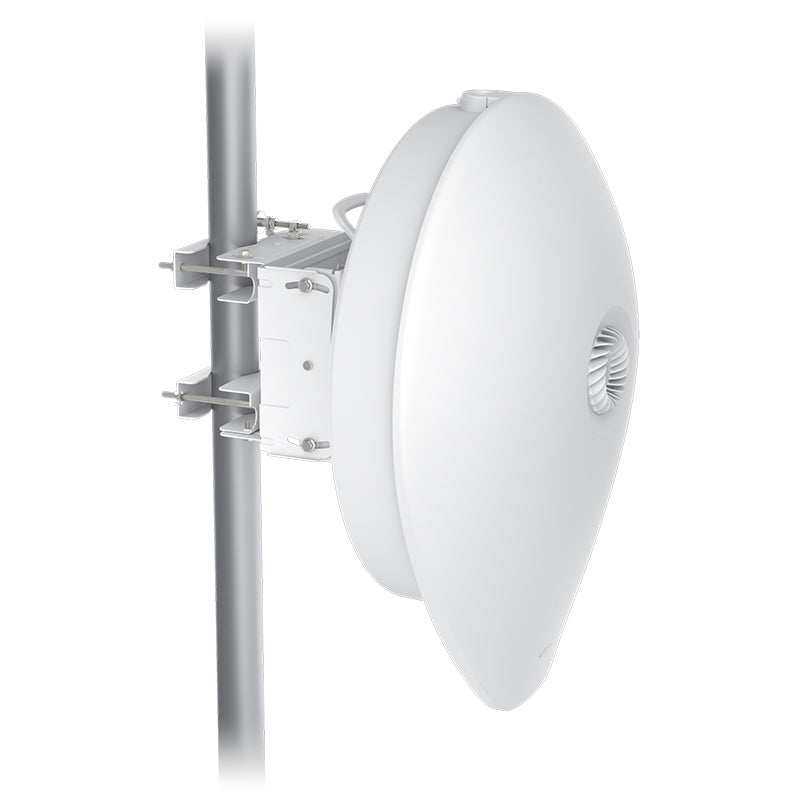

Ubiquiti UISP airFiber 60 XR 60GHz Long Distance PTP Bridge Radio with 5GHz Failover

Ubiquiti UISP airFiber 60 XR 60GHz Long Distance PTP Bridge Radio with 5GHz Failover

AF60-XR

$2,495.00 NZD
$2,495.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UISP airFiber 60 XR 60GHz Long Distance PTP Bridge Radio with 5GHz Failover (Sold Each)
Ubiquiti UISP airFiber 60 XR 60 GHz Long Distance Point to Point Bridge Radio with 5GHz Failover (Sold Each). Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.
Features
  • 15+ km link range (with 5GHz backup)
  • 5.4 Gbps max. throughput
  • 5 GHz 800+ Mbps weather-resilient backup radio
  • (1) GbE and (1) 10G SFP+ port
  • Precision alignment mount
  • Integrated GPS & Bluetooth
Details
Manufacturer's Code AF60-XR (Sold Each)
Operating mode PtP only
Max. throughput 2.5+ Gbps
Max. range 15+ km
Encryption WPA2-PSK (AES)
Operating frequency 57–71 Ghz * Depends on regulatory region.
Channel bandwidth 2160, 1080 MHz
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region.
Management radio 2400–2483.5 MHz
Modulation 16QAM, BPSK, QPSK
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.4deg, Elevation: 3 dB 1.4deg
Electrical downtilt 0deg
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology Services UISP, ping watchdog, NTP client, device discovery
5GHz Backup frequency 5150 - 5875 MHz *Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Antenna gain 26 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5deg, Elevation: 3 dB 5deg
Cross-pol isolation 14 dB
5GHz Electrical downtilt 0deg
Antenna alignment, discovery utility, ping, trace route, speed test
Network Bridge mode
Management application UISP web: Version 1.4.3 and later, UISP iOSâ„¢: Version 2.20 and later, UISP Androidâ„¢: Version 2.21.5 and later
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L1 GB
Networking interface (1) GbE RJ45 port, (1) 1/10G SFP+port
Max. power consumption 24W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A gigabit PoE adapter (included)
supported voltage range 44–54V DC, 22–27V DC
GPS Yes
RF connections Internal
Button Factory reset
Dimensions 779 x 664 x 383 mm (30.7 x 26.1 x 15.1")
Weight Without mount: 8.6 kg (19 lb), With mount: 13 kg (28.7 lb)
Enclosure materials UV stabilized polycarbonate, steel
Mount material Galvanized steel
Mounting Precision alignment kit (included), Pole compatibility: 40 to 80 mm (1.5 to 3.15") on pipe outer diameter
Wind loading 422 N at 200 km/h (94.86 lbf at 125 mph)
Weatherproofing IPX6
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Details
Included 1 x AF60-XR
Power Injector 48V, 0.65A PoE GigE Adapter (Included)
Pole Mount bracket Yes, Included
