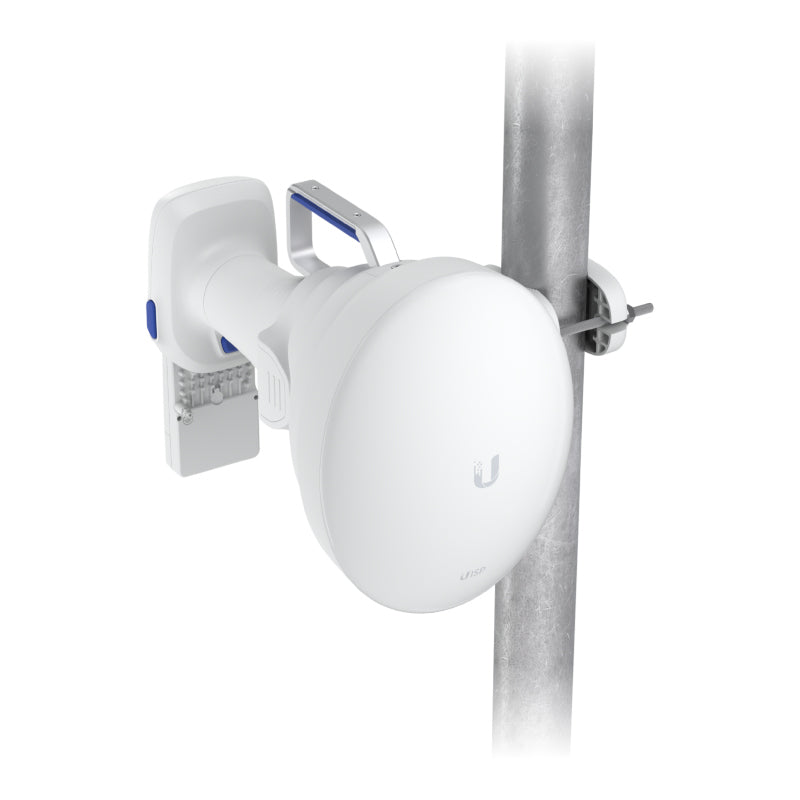

Ubiquiti UISP 5-7GHz 19.5dBi 45deg High-isolation, point-to-multipoint (PtMP) Horn Antenna
Ubiquiti UISP-Horn is a high-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio, LTU-Rocket 5GHz PTMP Connectorised Access Point or Rocket AC PRISM Gen2 Access Point.
Features
  • High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)
  • 15+ km PtMP link range
  • Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing
  • Pole-mountable antenna with a metal carrying handle
  • Compatible with AF 5XHD, RP 5AC, LTU Rocket
Details
Manufacturer's Product Code UISP-Horn
Frequency Range 5.15 to 6.875 GHz
Gain 19.5dBi
Connectors WaveGuide connector with Snap on RP-SMA Adaptor
Beamwidth Azimuth: 30° (6 dB), Elevation: 25° (6 dB)
Dimensions 282 x 224 x 380 mm
Weight Device: 3.06 kg, Mount: 925 g
Enclosure Materials UV stabilized polycarbonate, aluminum alloy
Wind Survivability Up to 200 km/h
Wind Loading 90 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment ±20° elevation, ±25° azimuth
Pole compatibility Ø25 to 70 mm
Weatherproofing IPX6
Electrical Downtilt 0°
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol Isolation 20 dB
Front-to-Back Ratio Typical: 45 to 50 dB, Min: 40 dB
Details
Pole Mount Yes
Warranty Standard 12 Month RTB
