Ubiquiti UFiber WiFi High-Performance GPON CPE with 4 Ethernet Ports
Ubiquiti UFiber WiFi High-Performance GPON CPE with 4 Ethernet Ports
SKU:UF-WiFi
Regular price
$161.00 NZD
Regular price
Sale price
$161.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability

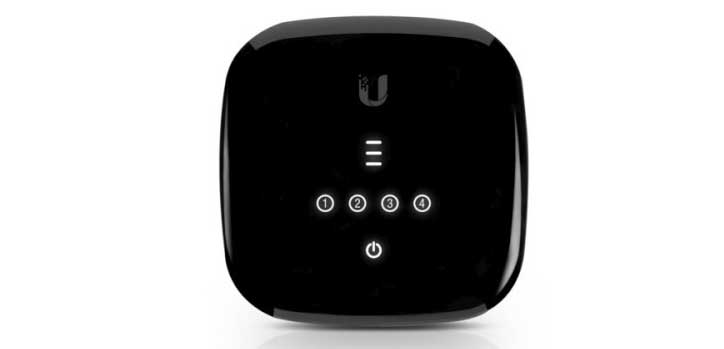

Ubiquiti UFiber WiFi High-Performance GPON CPE with 4 Ethernet Ports
The Ubiquiti UF-WIFI UFiber WiFi High-Performance GPON CPE with 4 Ethernet Ports.
Sporting a sleek industrial design, the UFiber WiFi is a robust, high?performance GPON CPE that features an informational LED display with 4 Ethernet ports and integrated 2.4GHz 802.11n WiFi. The easy-to-read LEDs provide status information for: Ethernet connection, signal strength, and power.
Versatile Power
The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
Designed for Integration
Up to 128 UFiber WiFi devices can be connected to a single GPON port. supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
Sporting a sleek industrial design, the UFiber WiFi is a robust, high?performance GPON CPE that features an informational LED display with 4 Ethernet ports and integrated 2.4GHz 802.11n WiFi. The easy-to-read LEDs provide status information for: Ethernet connection, signal strength, and power.
Versatile Power
The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
Designed for Integration
Up to 128 UFiber WiFi devices can be connected to a single GPON port. supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
Features
- (1) GPON WAN Port and (4) Gigabit Ethernet Ports
- 2.4GHz 802.11n Wi-Fi
- 7W Max. Power Consumption
| Details | |
|---|---|
| Manufacturer's Code | UF-WiFi |
| Dimensions | 126.34 x 126.09 x 31.65 mm |
| Weight | 190 g |
| Networking Interfaces | (1) SC/APC GPON WAN, (4) Gigabit RJ45 Ethernet LAN, (1) 2.4GHz 802.11n Wi-Fi |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range | TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8 dBm |
| Power Method | DC Jack, 24VDC or 24V Passive PoE (Pins 4, 5+; 7, 8-) |
| Power Supply | 100-240VAC / 50-60 Hz Universal AC/DC |
| Power Adapter | 24V / 0.5A |
| Max. Power Consumption | 7W |
| supported Voltage Range | 20 to 28V |
| Processor Specs | MIPS, 900 MHz |
| Memory Information | 256 MB DDR |
| Buttons | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Supply | 24VDC 0.5A PSU |
