Ubiquiti

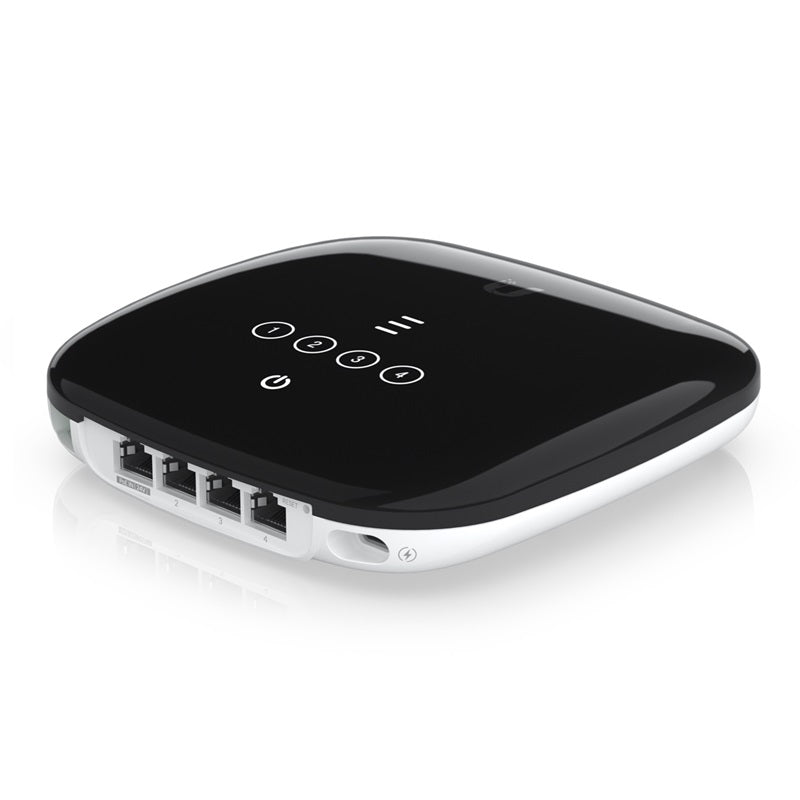

Ubiquiti UFiber GPON customer-premises equipment (CPE) with WiFi6

Ubiquiti UFiber GPON customer-premises equipment (CPE) with WiFi6

UF-WIFI6

$227.00 NZD
$227.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti UFiber GPON customer-premises equipment (CPE) with WiFi6
Ubiquiti UFiber GPON customer-premises equipment (CPE) with WiFi6.

Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.
Features
  • (1) GPON port
  • Integrated 4-port GbE switch
  • Integrated WiFi6
Details
Manufacturer's Code UF-WIFI6-AU
Processor Dual-core MIPS 1004 Kc at 900 MHz
Memory 256 MB RAM
Total non-blocking line rate 2.488 Gbps downstream, 1.244 Gbps upstream
Networking interfaces (1) SC/APC, ITU-G.984 GPON WAN port, (4) GbE RJ45 LAN ports, WiFi 802.11ax 5/2.4 GHz channels
PoE interface (1) PoE in, 24V passive PoE
Management interface Ethernet in-band, PON
Button Factory-reset
Max. power consumption 11W
Power method USB-C 5VDC, 3A (included), 24V passive PoE, 0.5A
Power supply 5VDC, 3A power adapter, 1.5 m cord (included), Passive PoE 2-pair (4, 5+; 7, 8-)
supported voltage range 10 to 30VDC passive PoE, 5VDC adapter
Normal TX range of optical module 0.5 to 5 dBm
Normal RX range of optical module -8 to -28 dBm
Max. WiFi TX power 2.4 Ghz & 5 Ghz - 20 dBm
MIMO 2.4 Ghz & 5 Ghz - 2 x 2
Max. WiFi radio rate 2.4 Ghz - 300 Mbps, 5 Ghz - 1.2 Gbps
Antenna Gain 2.4 GHz - 1dBi, 5 GHz - 3 dBi
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Operating wavelength 1310 nm TX/1490 nm RX
Optical interface downstream nominal bit rate 2488.32 Mbit/s
Optical interface upstream nominal bit rate 1244.16 Mbit/s
Physical reach 20 km
Operating temperature -15 to 45° C (5 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Details
Included Wall mount Kit, USB-C 5VDC, 3A Power Supply
