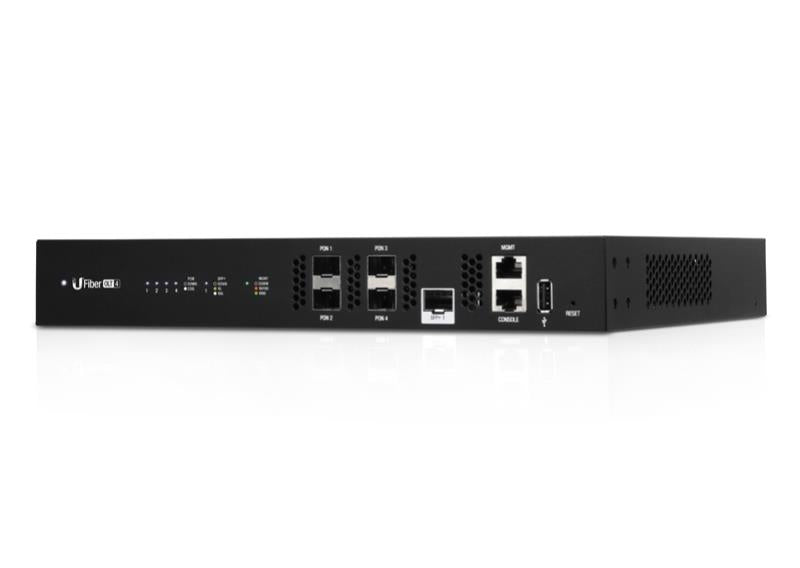

Ubiquiti UFiber 4 Port GPON Optical Line Terminal (OLT)

Ubiquiti UFiber 4 Port GPON Optical Line Terminal (OLT)

UF-OLT-4

$2,023.00 NZD
$2,023.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti UFiber 4 Port GPON Optical Line Terminal (OLT)
The Ubiquiti UFiber UF-OLT-4 offers four GPON ports and supports up to 512 concurrent clients with physical links of up to 20 km in distance. There is one SFP+ port to provide 10G of uplink connectivity. The UF-OLT-4 provides flexible power options, with Internal AC PSU and 24VDC Barrel Jack.
Features
  • Ports: (4) GPON SFP Ports, (1) SFP+ Port
  • Concurrent Clients: 512 ONUs
  • GPON Range: Up to 20 km Link
  • GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
  • Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
  • Mounting: 1U Rack-Mountable (Optional)
  • No License Fees
  • Simple Web UI
  • Traffic Shaping using the OLT
  • Management VLAN
  • DHCP Option 82
  • Client Isolation
Details
Manufacturer's Code UF-OLT-4
Dimensions 299.80 x 258.95 x 42.55 mm (11.80 x 10.19 x 1.68")
Weight 1.93 kg (4.25 lb), (with Mount Brackets) 2.13 kg (4.70 lb)
Networking Interfaces (4) GPON OLT SFP, (1) 1G/10G SFP+
Concurrent Clients 512 Registered ONUs/ONTs (128 per GPON Port)
Management Interfaces (1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port
GPON Speeds 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
Operating Wavelengths 1490 nm TX, 1310 nm RX
Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm, RX: -28 dBm to -8 dBm
Range Physical Reach: 20km, Logical Reach: 60km, Max. Differential Fiber Distance: 20 km (B+) /40 km (C+)
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC Internal 56W DC
Max. Power Consumption 35W (Excluding SFP Modules)
Operating Mode OLT 2/3 Ethernet Switch and GPON Core
Advanced QoS supports 8 Priority Queues per User Port and Traffic Classification
Processor Specs MIPS 1004kc, 880 MHz Dual Core
Memory Information 512 MB DDR3, 512 MB NAND
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Details
Power Supply Included
Fiber Module 1 x UF-GP-B+ included
