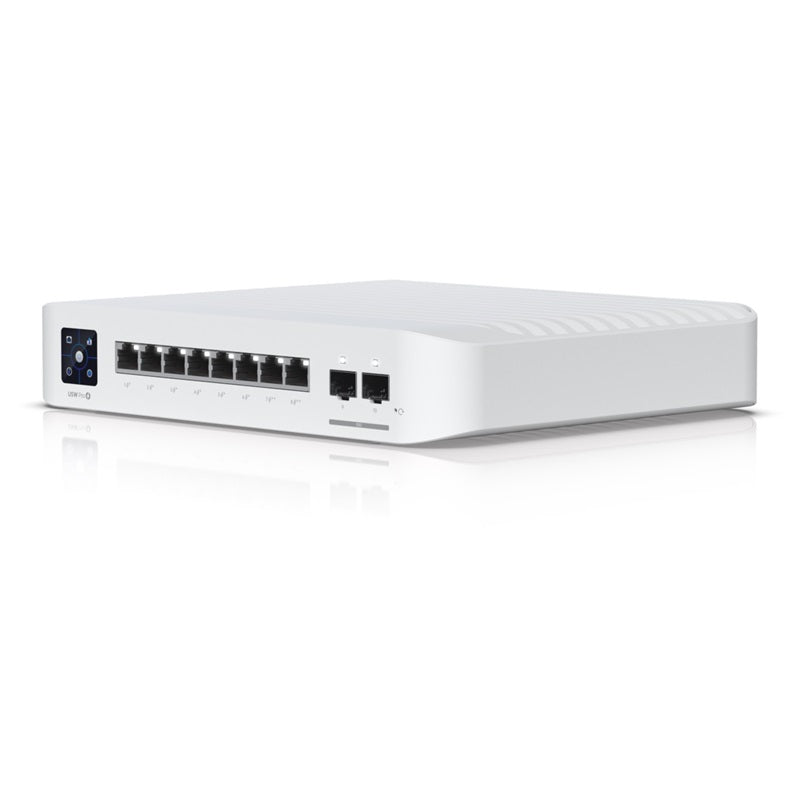

Ubiquiti Switch Professional 8 PoE 8-port Gigabit Layer 3 switch with PoE+ and PoE++ Outputs

Ubiquiti Switch Professional 8 PoE 8-port Gigabit Layer 3 switch with PoE+ and PoE++ Outputs

USW-Pro-8-PoE

$699.00 NZD
$699.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti Switch Professional 8 PoE Managed Gigabit Layer 3, PoE switch with (8) 1GbE and (2) 10G SFP+ ports
Ubiquiti Switch Professional 8 PoE Managed Layer 3, PoE switch with (6) GbE, 802.3at PoE+ RJ45 ports, (2) GbE, 802.3bt PoE++ RJ45 ports and (2) 10G SFP+ ports and 120W total PoE availability

Features
  • (6) GbE PoE+ ports
  • (2) GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 120W total PoE availability
Details
Manufacturer's Code USW-Pro-8-PoE
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports, (2) 10 Gbps SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-), (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100—240V AC, max. 2A
Power supply AC/DC, internal
supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W, PoE+: 30W, PoE++: 60W
Voltage range PoE mode PoE: 44—57V, PoE+: 50—57V, PoE++: 50—57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
UniFi Network Version 7.5.176 and later
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Plastic, metal
Mount material Plastic
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Details
Power Supply AU/NZ Power Cord included
Mounting Hardware Wall Mount Kit included
