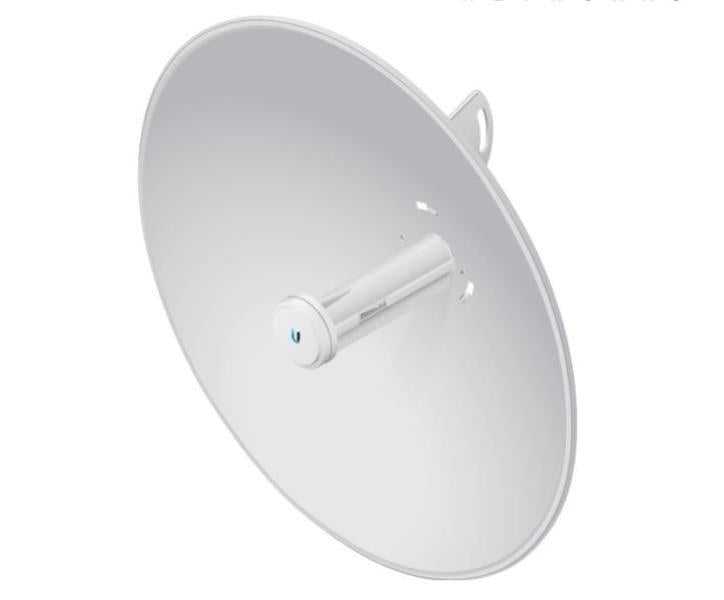

Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n with 18dBi Antenna

Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n with 18dBi Antenna

PBE-M2-400

$177.00 NZD
$177.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n Radio with 18dBi Antenna
Ubiquiti PowerBeam PBE-M2-400 600mW 802.11b/g/n 18dBi Dish Antenna. The Ubiquiti PowerBeam M2 with 18dBi antenna has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The PowerBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. Great for remote point to point wireless applications or as a point to multipoint WISP CPE.
Features
  • The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
  • All-in-one design The PowerBeam provides both the radio and antenna in the smallest possible footprint.
  • Quick and easy installation.
  • airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.
  • Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.
  • Ubiquiti's Antenna R&D team applied their years of experience in cellular basestation antenna design in developing the revolutionary airMAX
  • See NBE-RAD-400 for a compatible radome cover for this product
Details
Manufacturer's Code PBE-M2-400
Chipset Atheros MIPS 74Kc, 560 MHz
Output Power 28dBm
Operating Modes AP/Station/WDS
Frequency Range 2405 - 2475 MHz
Interfaces (1) 10/100 Ethernet Port
Wireless standards 802.11b/g/n
Temperature Range -40 to 70° C
PoE In Yes, 12-24V
Operating System Ubiquiti airOS V
Antenna gain dBi 18dBi
Max Power consumption 6W
Number of chains 2
Polarisation Dual Linear
Wind Loading 200.2 N @ 200 km/h (45 lbf @ 125 mph)
Pole Diameter 32-56mm
Dimensions 420 x 420 x 289 mm
IP Rating IP54
Typical Range (Based on PtP) 15km+
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Pole Mount Bracket and U-Bolt
