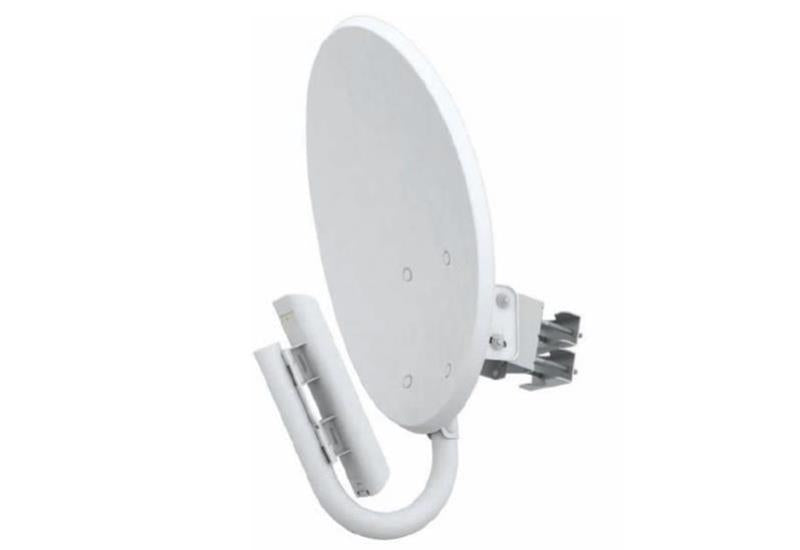

Ubiquiti NanoBridge M3 3.5GHz Kit for PtP and CPE

Ubiquiti NanoBridge M3 3.5GHz Kit for PtP and CPE

NBM3

$149.00 NZD
$149.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti NanoBridge NBM3 3.5GHz Kit for PTP and PTMP
Not for use in New Zealand, Export only Ubiquiti NanoBridge M3 3.5GHz Kit for PtP and CPE. The Ubiquiti NanoBridge NBM3 3.5GHz combines Ubiquiti’s Inner feed and AirMax (MIMO TDMA Protocol) technologies to create a simple, yet extremely powerful and robust wireless unit capable of 100+Mbps real outdoor throughput and up to 30km+ range. The low cost, hi-performance, and robust “all-in-one” design of NanoBridge M make it extremely versatile and ideal in several different applications.
Features
  • RF & ESD/Surge Protection: Enhanced RF and Ethernet ESD/Surge protection for prolonged operation in harshest environments when used with shielded Ethernet cable and connector.
  • External Status LEDs: Activity and signal strength LEDs for easy installation and management for installers.
  • AirOS V: Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Details
Manufacturer's Code NBM3
Chipset Atheros MIPS 24KC, 400 MHz
Output Power 25 dBm
Operating Modes AP/Station/WDS
Frequency Range 3370 - 3730MHz
Interfaces (2) 10/100 Ethernet Ports
Temperature Range -30 to 75° C
PoE In Yes, 12-24V
Operating System Ubiquiti airOS V
Antenna gain dBi 21.5 - 22.5 dBi
Max Power consumption 8 W
Number of chains 2
Polarisation Dual Linear
Pole Diameter 30-50mm
Dimensions 492 x 440 x 705mm
IP Rating IP54
Typical Range (Based on PtP) Up to 30km+
Licencing This product may use licensed frequencies and is not for Re-sale in New Zealand
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Pole Mount Included
