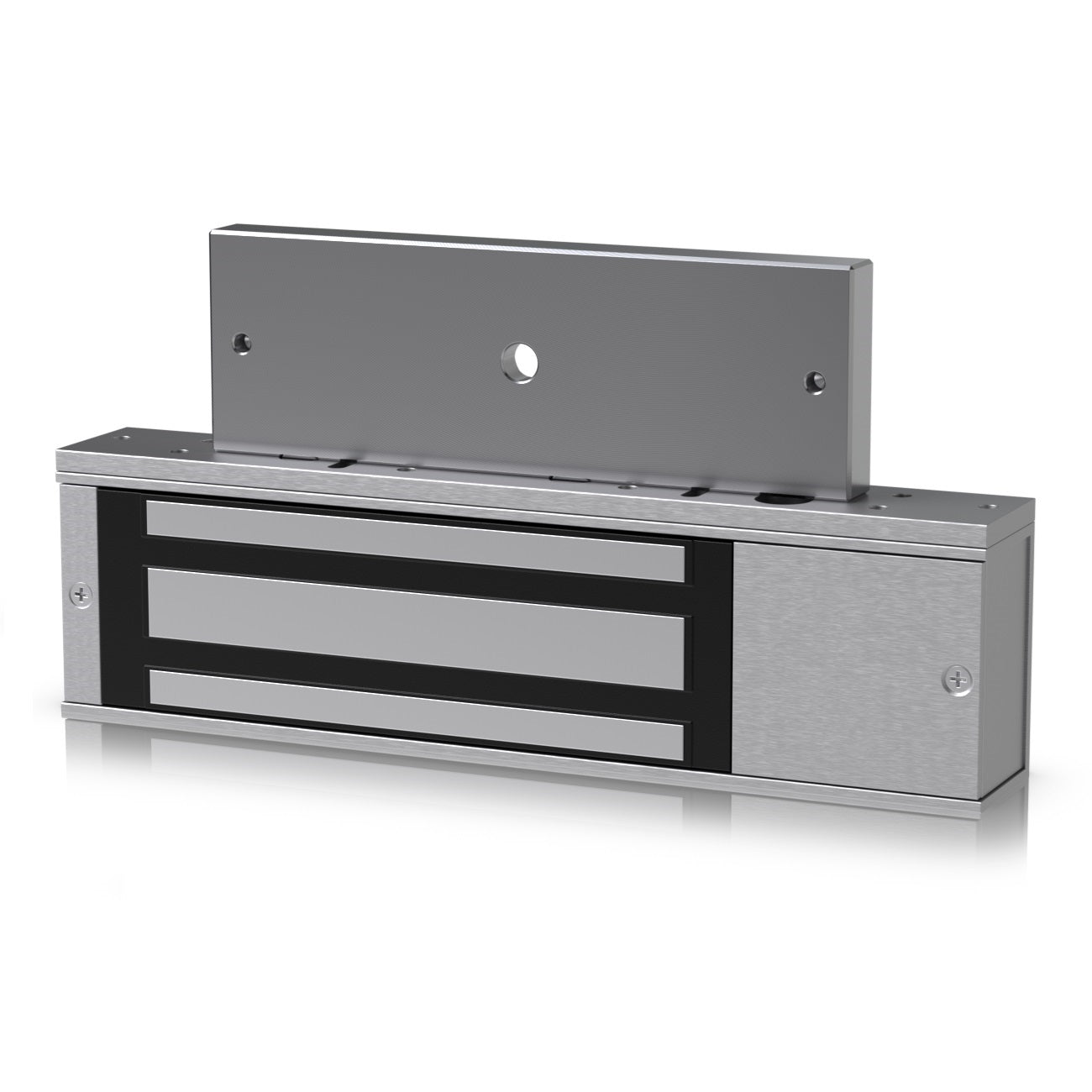

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors

Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors

UA-Lock-Magnetic-540kg

$446.00 NZD
$446.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors
Ubiquiti Magnetic Lock, UA-Lock-Magnetic-540kg fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).
Features
  • Holds up to 540 kg (1,200 lb)
  • Can be installed on a wide variety of door types* excluding full glass
Details
Product code UA-Lock-Magnetic-540kg
Dimensions Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6"), Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2"), Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Weight Lock body: 2.9 kg (6.4 lb), Install plate: 145 g (0.3 lb), Armature: 1.4 kg (3.1 lb)
Enclosure material Device/brackets: aluminum, Armature: steel
Voltage 12V DC
Current power 500mA ±10%
Wiring connection Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub), Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub), DPS/+ (DPS+ on UA-Hub), DPS/-(DPS-onUA-Hub)
Lock type Fail safe lock, Single door
Holding force 540 kg (1,200 lb)
LED Green: unlocked, Red: locked
Suitability Wood/metal door
Mounting accessories L bracket: door thickness up to 42 mm (up to 1.7"), outward opening door, Z bracket: used with L bracket for inward opening door
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 90% noncondensing
Certifications FCC, IC, CE
Details
Included UA-Lock-Magnetic, L bracket, Z bracket,
