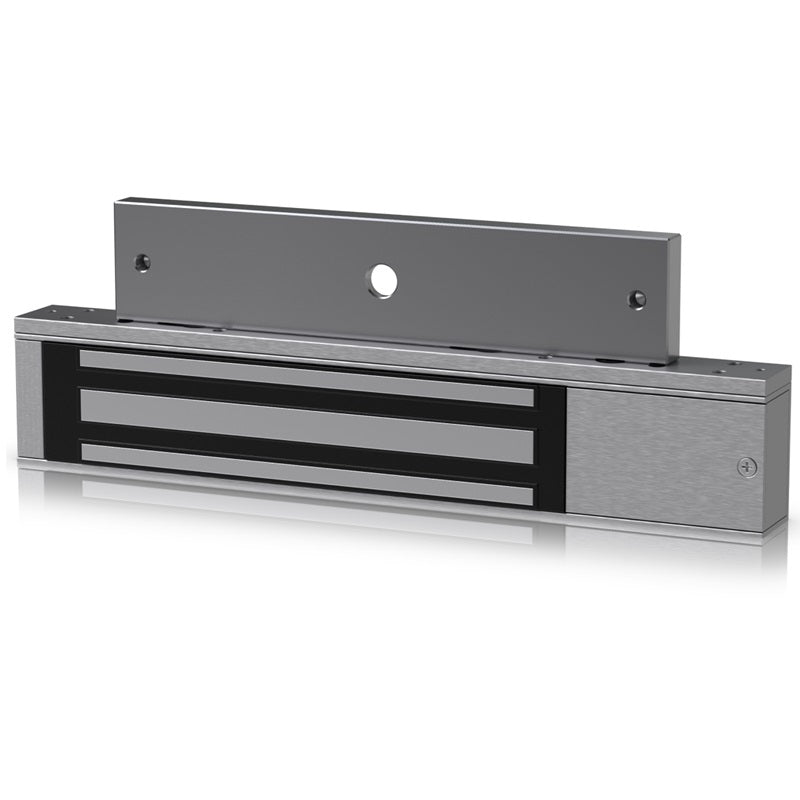

Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors

Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors

UA-Lock-Magnetic-270kg

$339.00 NZD
$339.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti Magnetic Lock UA-Lock-Magnetic-270kg fail-safe Magnetic Lock for Inswing and Outswing Doors
Ubiquiti Magnetic Lock, UA-Lock-Magnetic-270kg fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub (UA Hub).

Features
  • Holds up to 270 kg (600 lb)
  • Can be installed on a wide variety of door types, including full Glass
  • Compatibility: UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub
Details
Product code UA-Lock-Magnetic-270kg
Dimensions Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ), Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ), Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")
Weight Lock body: 1 kg (2.2 lb), Install plate: 70 g (0.15 lb), Armature: 600 g (1.3 lb)
Enclosure material Device/brackets: aluminum, Armature: steel
Voltage 12V DC
Current power 800mA ±10%
Wiring connection Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub), Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub), DPS/+ (DPS+ on UA-Hub), DPS/-(DPS-onUA-Hub)
Lock type Fail safe lock, Single door
Holding force 270 kg (600 lb)
LED Green: unlocked, Red: locked
Suitability wooden/metal/glass door
Mounting accessories L bracket : door thickness up to 42 mm (up to 1.7"), outward opening door, Z bracket: used with L bracket for inward opening door, U bracket: used with glass door
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 90% noncondensing
Certifications FCC, IC, CE
Details
Included UA-Lock-Magnetic, L bracket, Z bracket, U bracket
