Ubiquiti

Ubiquiti Long-range Gigabit Ethernet Repeater with 802.3af/at PoE/PoE+ passthrough PoE output

Ubiquiti Long-range Gigabit Ethernet Repeater with 802.3af/at PoE/PoE+ passthrough PoE output

UACC-LRE

$70.00 NZD
$70.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

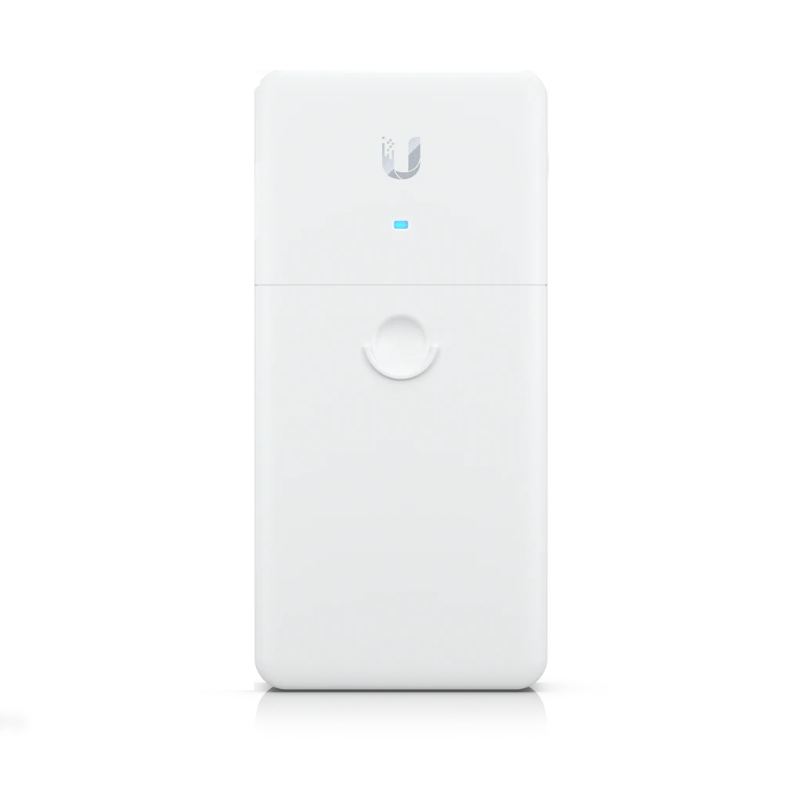

Ubiquiti Long-range Gigabit Ethernet Repeater with 802.3af/at PoE/PoE+ passthrough PoE output
Ubiquiti Long-range Gigabit Ethernet Repeater. Long-range Gigabit Ethernet adapter that receives 802.3af/at PoE/PoE+ and offers passthrough PoE output. The Long-range Indoor/Outdoor Repeater (UACC LRE) is Gigabit adapter that allows you to easily and inexpensively expand your Ethernet network's range. With its (2) GbE RJ45 ports, the UACC LRE can receive 802.3af/at PoE/PoE+ while providing passthrough PoE output. You can also chain multiple UACC LRE adapters together to connect access points and cameras that are far away from your PoE switch. The UACC LRE also offers 10kA+ surge protection and works reliably in extreme temperatures (-40 to 80° C) to protect your deployment from weather and electrical damage.
Features
  • Establishes long-range connections between PoE switches and devices
  • Chains with other UACC LRE units
  • (1) GbE RJ45 port for 802.3af/at PoE/PoE+ input
  • (1) GbE RJ45 port for passthrough PoE output
  • 10kA+ surge protection
  • Works reliably in extreme temperatures (-40 to 80° C)
  • Deployment tested: (9) daisy-chained UACC LRE units connected to an endpoint device (e.g., camera, AP) using (10) 100 m UISP Cable Pros, all powered a by UniFi PoE+ switch.
Details
Manufacturer's Code UACC-LRE
Networking interfaces (2) GbE RJ45 ports
Power method 802.3af/at PoE/PoE+ 2-pairs (pins 1, 2+; 3, 6-)
Max power consumption (excluding PoE out) 1.5W
Voltage range 37 to 57VDC
PoE interfaces (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
ESD/EMP protection Air/contact: ± 30kV
DC sparkover voltage 90V at 100V/s
Max. impulse sparkover voltage 700V at 1kV/µs
Discharge current 10kA+
Modes Long-range indoor, Outdoor ethernet repeater
Operating temperature -40 to 80° C (-40 to 176° F)
Operating humidity 10 to 95% noncondensing
Certications CE, FCC, IC
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Pole Mount Yes, Hose Clamp or Cable Tie
Wall Mount Optional - Purchased Separately
Window Mount Optional - Purchased Separately
