Ubiquiti

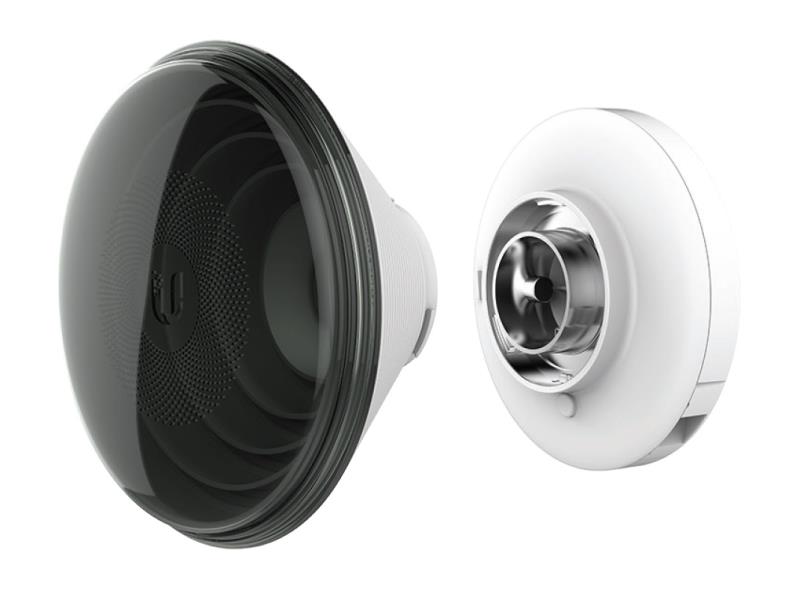

Ubiquiti IsoStation 5GHz airMAX 250mW 802.11a/n with 14dBi Antenna

Ubiquiti IsoStation 5GHz airMAX 250mW 802.11a/n with 14dBi Antenna

IS-M5

$179.00 NZD
$179.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti IsoStation 5GHz airMAX 250mW 802.11a/n with 14dBi interchangeable Isolation Antenna
Ubiquiti IS-M5 IsoStation 5GHz airMAX 250mW 802.11a/n with 45 deg 14dBi interchangeable Isolation Antenna included, with Metal shielded radio base station, Ubiquiti Networks has launched the latest generation of airMAX Base Station with dedicated Wi-Fi management, the IsoStationâ„¢ M5.
Features
  • Interchangeable horn antennas for enhanced beam shaping.
  • Horn feed comes directly from the radio input/output so connectors are eliminated.
  • Single button release for ease of changing antennas.
  • All metal, shielded radio base.
  • Metal trap for quick pole-mounting.
  • Works with NSM5, LOCOM5 and NBE-M5-16
Details
Manufacturer's Code IS-M5
Chipset Atheros MIPS 74Kc, 560 MHz
Output Power 24dBm
Operating Modes AP/Station/WDS
Frequency Range 5150 - 5875 MHz
Interfaces (1) 10/100/1000 Ethernet Port
Wireless standards 802.11a/n
Temperature Range -40 to 70° C
PoE In Yes, 24V
Operating System Ubiquiti airOS VI
Antenna gain dBi 14dBi
Max Power consumption 6.5W
Number of chains 2
Beamwidth 45° (Default Horn)
Wind Loading 36 N @ 200 km/h (8.09 lbf @ 125 mph)
Pole Diameter 30-50mm
Dimensions With Horn: 174 x 174 x 150 mm, Without Horn: 131 x 131 x 65 mm
IP Rating IP54
Details
Power Supply 3 Pin Clover Lead
Power Injector 24V POE Injector
Pole Mount Yes, Hose Clamp or Cable Tie
Antenna 45 deg 14dBi interchangeable Isolation Antenna included
View full details
