Ubiquiti Flex Switch Outdoor Adapter Kit for Street Light Pole Applications

Ubiquiti Flex Switch Outdoor Adapter Kit for Street Light Pole Applications

USW-Flex-Utility

$106.00 NZD
$106.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

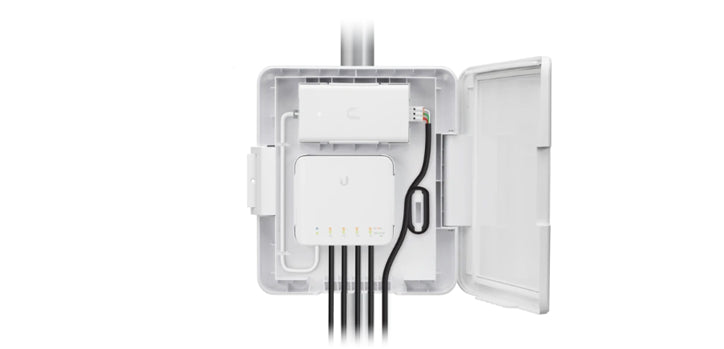

Ubiquiti Flex Switch Outdoor Weatherproof Enclosure Adapter Kit for Street Light Pole Applications
Ubiquiti Flex Switch Adapter Kit for Street Light Pole Applications. The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

Note: UniFi Switch Flex, USW-Flex, sold separately
Details
Manufacturer's Product Code USW-Flex-Utility
Dimensions 249 x 218 x 60 mm(9.80 x 8.58 x 2.36"
Weight 740 g (26.10 oz)
Output Voltage 54V, 1.11A
Rated Voltage 100-240VAC
Input Current 1.5A (Max.)
Efficiency > 86%
Output Ripple 200mVpp
Line Regulation < 1%
Load Regulation < 3%
4-Pair Powering Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature -20 to 60? C (-4 to 140? F)
Storage Temperature -30 to 70? C (-22 to 158? F)
Operating Humidity 5 to 90%, Noncondensing
Surge Immunity 4kV Difference and Common Mode
Details
PoE Power Supply Included
AC Terminal Block Included
Mounting Brackets Included
