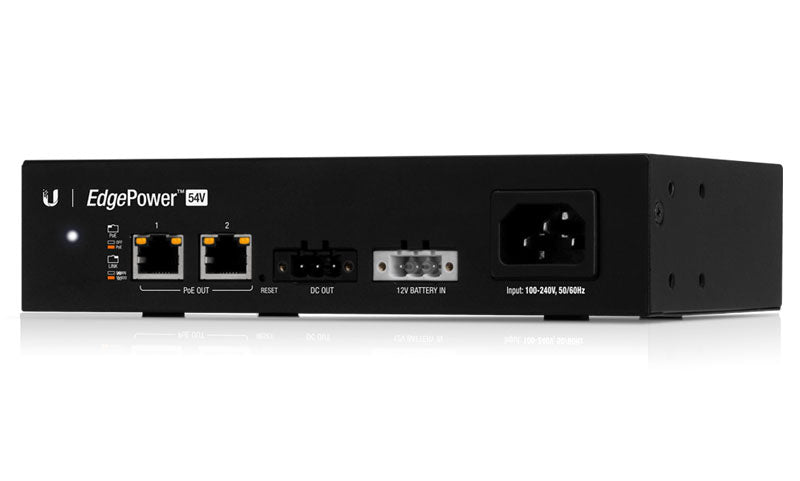

Ubiquiti EdgePower 54V-72W Power Supply with UPS and PoE
Ubiquiti EdgePower 54V-72W Power Supply with UPS and PoE
SKU:EP-54V-72W
Regular price
$356.00 NZD
Regular price
Sale price
$356.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Out of stock
Quantity
Couldn't load pickup availability
Ubiquiti EdgePower 54V-72W
Ubiquiti EdgePower 54V-72W Power Supply with UPS and PoE. Protect your WISP site against power loss with the EdgePower EP-24V-72W or EP-54V-72W, a convenient UPS device with dual PoE output ports. You can receive alerts in the event of a power outage, and the EP-24V-72W or EP-54V-72W offers a 12V lead acid battery input (optional) for redundancy if the AC input fails over.
The rack-mountable EdgePower 24V features 24VDC and 2 RJ45 PoE Ports. You can receive alerts in the event of a power outage, and the EdgePower 24V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).
Designed for convenient management, the EdgePower allows you to configure and monitor PSU features in a graphical user interface. You can also use UNMS (Ubiquiti® Network Management System) for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.
The rack-mountable EdgePower 24V features 24VDC and 2 RJ45 PoE Ports. You can receive alerts in the event of a power outage, and the EdgePower 24V offers a 12V lead acid battery input for redundancy if the AC input fails over (battery not included).
Designed for convenient management, the EdgePower allows you to configure and monitor PSU features in a graphical user interface. You can also use UNMS (Ubiquiti® Network Management System) for remote management, and SNMP is available to monitor the EdgePower for issues that warrant attention.
Features
- Reliable and Convenient UPS for WISPs
- UNMSâ„¢ Remote Management
- Automatic Alerts for Power Outages
- Dual 54 VDC Passive PoE Output
- Optional 12V Battery Input
| Details | |
|---|---|
| Manufacturer's Product Code | EP-54V-72W |
| Dimensions | 192 x 43.7 x 115 mm |
| Weight | 650 g |
| Networking | (2) 10/100 Mbps RJ45 Ports |
| Management | Ethernet In-Band |
| PoE Output | (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 54V, 1.3A |
| AC Input | 100-240VAC, 50-60 Hz, Universal Input |
| Battery Input | DC Terminal Block, 12VDC Lead Acid Battery* |
| Max Power Consumption | System: 2W, Output: 72W |
| LEDs | System Status, RJ45 Data Ports PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Details | |
|---|---|
| Power Cord | IEC Mains Power Cord |
| Mounting | Rackmount (1U) ears included |
