Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna

Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna

AM-5AC21-60

$411.00 NZD
$411.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

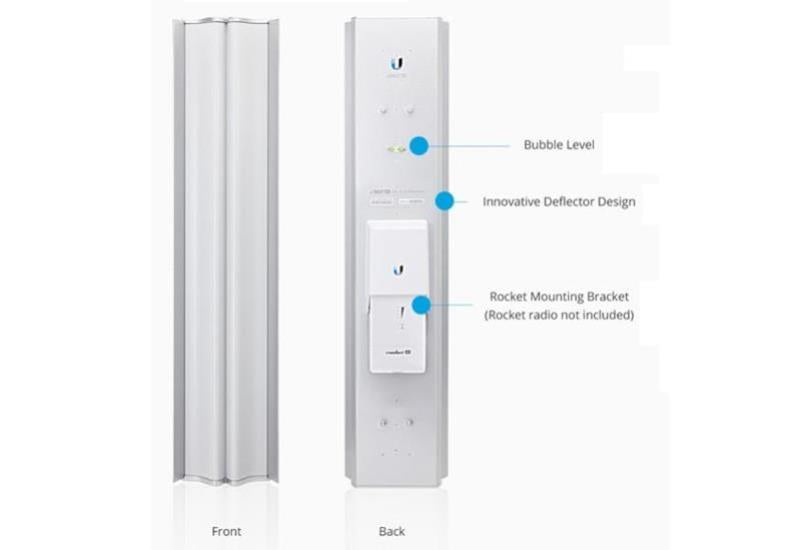

Ubiquiti airMAX 5GHz AC 21dBi 60 Degree Dual Polarised Sector Antenna AM-5AC21-60
Ubiquiti airMAX 5GHz AC 60 Degree Dual Polarised Sector Antenna. As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Features
  • Breakthrough Performance The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments.
  • Innovative Deflector Design Together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
  • Improved Signal-to-Noise Ratio (S/N or SNR) Allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).
  • Innovative Design the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
Details
Manufacturer's Product Code AM-5AC21-60
Frequency Range 5.10 - 5.85 GHz
Gain 21 dBi
Polarisation Dual-Linear
Cross Polarisation 25 dB Min.
Max VSWR 1.5:1
Vertical Beamwidth 60° (6 dBi)
Horizontal Beamwidth 60° (6 dBi)
Connector Type (2) RP-SMA Female
Dimensions 750 x 173 x 78 mm
Wind Loading 200km
Pole Mount Diameter 40 - 80mm
Details
Pole Mount Yes, Included
Warranty Standard 12 Month RTB
