Ubiquiti

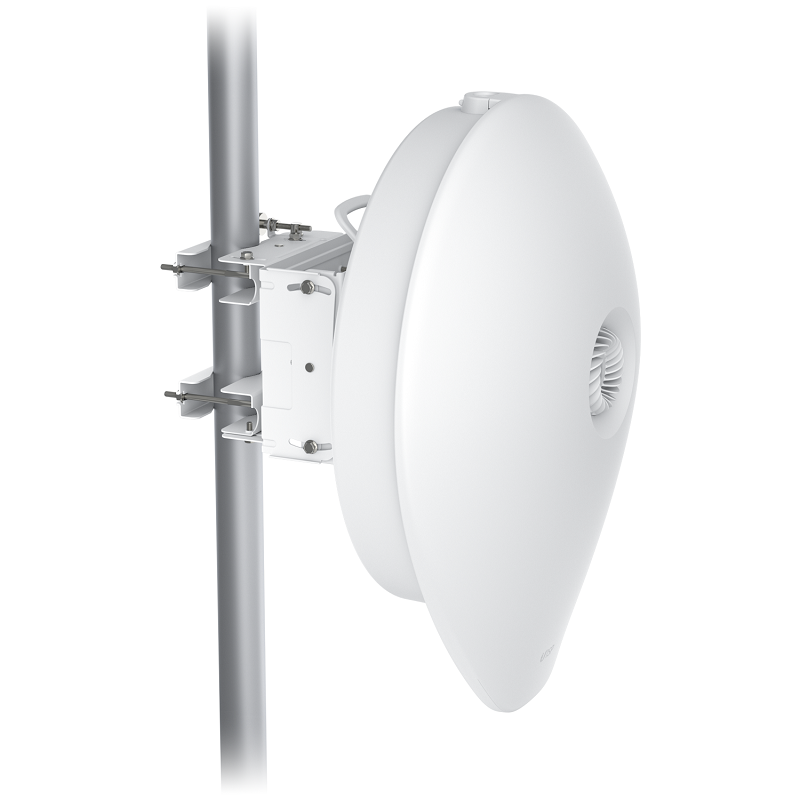

Ubiquiti airFiber 60GHz XG Multi-Gigabit, 60 GHz bridge radio with SFP+ support

Ubiquiti airFiber 60GHz XG Multi-Gigabit, 60 GHz bridge radio with SFP+ support

AF60-XG

$2,505.00 NZD
$2,505.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti airFiber 60GHz XG Multi-Gigabit, 60 GHz bridge radio with SFP+ support
Ubiquiti airFiber 60GHz XG Multi-Gigabit, 60 GHz bridge with 10G SFP+ support and 5GHz failover. Up to 6 Gbps max. throughput.
Features
  • Up to 4 km link range
  • 6 Gbps max. throughput
  • 5 GHz 800+ Mbps weather-resilient backup radio
  • (1) GbE and (1) 10G SFP+ port
  • Precision alignment mount
  • Integrated GPS & Bluetooth
  • Terragraph Certified
Details
Manufacturer's Code AF60-XG
Operating frequency 57–66 GHz, Backup 5150–5875 MHz
Channel bandwidth 2160 MHz/4320 MHz (With channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.6°, Elevation: 3 dB 1.6°
Max. throughput 5 GHz: 866.6 Mbps, 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Max. range 4 km
Encryption WPA2-PSK (AES)
Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory 2 GB DDR4
Networking interface (1) GbE RJ45 port, (1) 1/10G SFP+ port
Max. power consumption 31.2W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A Gigabit PoE adapter (included)
supported voltage range 44–54V DC, 22–27V DC
GPS Yes
RF connections Internal
Button Factory reset
Operating mode PtP only
Services UISP, ping watchdog, NTP client, system log
Utilities Antenna alignment tool, discovery utility, ping, speed test
Management application UISP web: Version 1.4.3 and later, UISP iOSâ„¢ and Androidâ„¢: Version 2.19 and later
Dimensions 779 x 664 x 383 mm (30.68 x 26.14 x 15.06")
Weight Without mount: 8.6 kg (19 lb), With mount: 13 kg (28.7 lb)
Enclosure materials UV stabilized polycarbonate, steel
Mount material Galvanized steel
Mounting Precision alignment kit (included), Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15")
Wind loading 422 N at 200 km/h (94.86 lbf at 125 mph)
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
Details
Power Injector 48V, 0.65A PoE GigE Adapter (Included)
Pole Mount bracket Yes, Included
