Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect

Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect

UISP-Dish

$384.00 NZD
$384.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

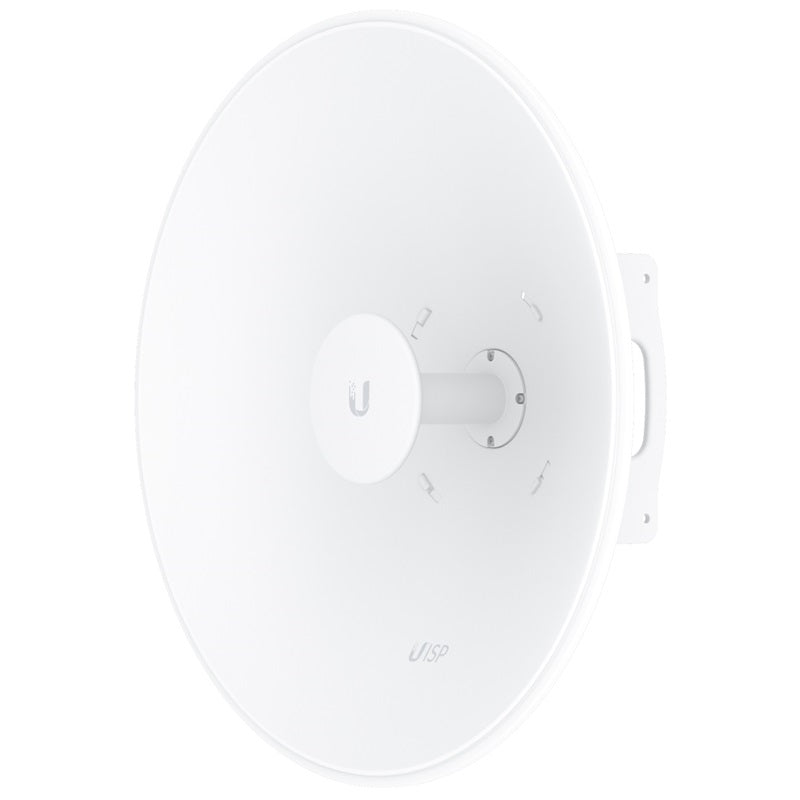

Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect
Ubiquiti 6GHz 30dBi Dish Antenna with Radio Waveguide Direct Connect. UISP-Dish is a point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

Designed to operated with the airFiber 5XHD PTP LTU Backhaul Radio or Rocket AC PRISM Gen2 Access Point
Features
  • Frequency range: 5.15 - 6.875 GHz
  • 30+ km PtP link range
  • Precision mounting bracket for easy installation and alignment
  • Compatible with AF 5XHD and RP 5AC
Details
Manufacturer's Product Code UISP-Dish
Frequency Range 5.15 to 6.875 GHz
Gain 30dBi
Beamwidth Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB), Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Dimensions Ø 650 x 200 mm
Weight Device: 4.54 kg, Mount: 3.1 kg
Enclosure Materials Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind Survivability Up to 200 km/h
Wind Loading 860 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment ±15° elevation
Pole compatibility Ø40 to 90mm
Weatherproofing IPX6
Electrical Downtilt 0°
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol Isolation 20 dB
Details
Pole Mount Yes
Waveguide Adapter Yes
Warranty Standard 12 Month RTB
