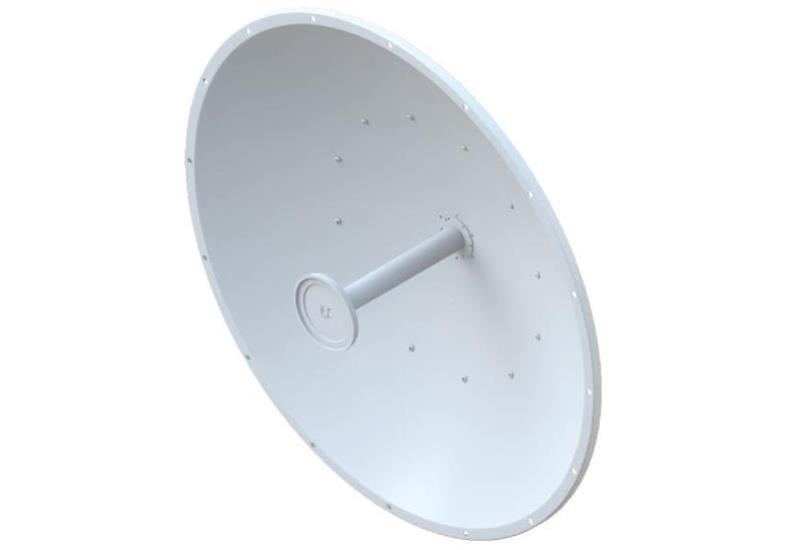

Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna
Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna
SKU:AF-5G34-S45
Regular price
$687.00 NZD
Regular price
Sale price
$687.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
Ubiquiti 5GHz airFiber High Gain 34dBi Dual Slant Dish Antenna
Ubiquiti 5GHz 34dBi AF-5X Dual Slant Dish Antenna. The AF-5X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). It is compatible with multiple Ubiquiti antennas offering gain of 23 to 34 dBi. The compact form factor of the AF-5X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special . The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the AF-5X.
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
| Details | |
|---|---|
| Manufacturer's Product Code | AF-5G34-S45 |
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
| Weight | 13.5 kg (29.76 lb) (Mount Included) |
| Frequency | 5.1 - 5.8 GHz |
| Gain | 34 dBi |
| Max. VSWR | 1.4:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 1,779 N @ 200 km/h (400 lb @ 125 mph) |
| Polarization | Dual Linear |
| F/B Ratio | 42 dB |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included |
| Details | |
|---|---|
| Pole Mount Kit | Included |
| Pigtails | 2 x 150mm RP-SMA to RP-SMA coax cable included |
