• Ubiquiti 5GHz 30dBi RocketDish Light Weight - 2 Pack
1 1

Ubiquiti

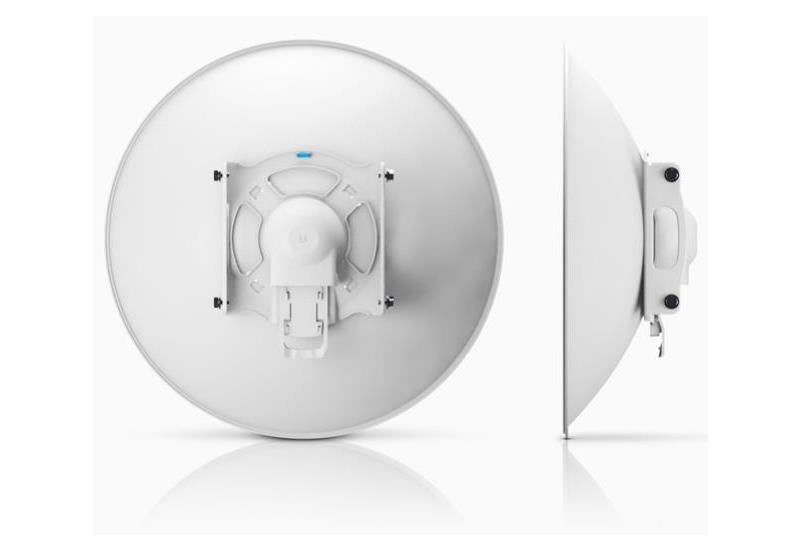

Ubiquiti 5GHz 30dBi RocketDish Light Weight - 2 Pack

Ubiquiti 5GHz 30dBi RocketDish Light Weight - 2 Pack

RD-5G30-LW-2PK

$406.00 NZD
$406.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Ubiquiti 5GHz 30dBi RocketDish Light Weight - 2 Pack
2 Pack RD-5G30-LW RocketDish™ antenna with a Rocket™ basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish is available in the following frequency models: 2.4 GHz, 3 GHz and 5 GHz. The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.

This is for one pair of RD-5G30-LW Dishes, to purchase a single dish please see https://www.gowifi.co.nz/ant-206.html
Features
  • The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:
  • Lightweight yet robust components lessen the load
  • The extended depth of the dish Reflector rejects noise interference in co-location deployments
  • The design of the mounting bracket allows for ease of installation on a pole or tower
  • See ISO-BEAM-620 for a compatible radome cover for this product.
Details
Manufacturer's Product Code RD-5G30-LW 2-Pack
Frequency Range 5.1 - 5.9 GHz
Gain 30 dBi
Polarisation Dual-Linear
Cross Polarisation 35 dB Min.
Max VSWR 1.6:1
Vertical Beamwidth 5.8° (3 dB)
Horizontal Beamwidth 5.8° (3 dB)
Connector Type (2) RP-SMA Female
Dimensions 650 x 650 x 386 mm
Radome Enclosed Sold Separately (ISO-BEAM-620)
Wind Loading 200km/h
Pole Mount Diameter 38 - 75mm
Details
Pole Mount Yes
View full details
