Ubiquiti

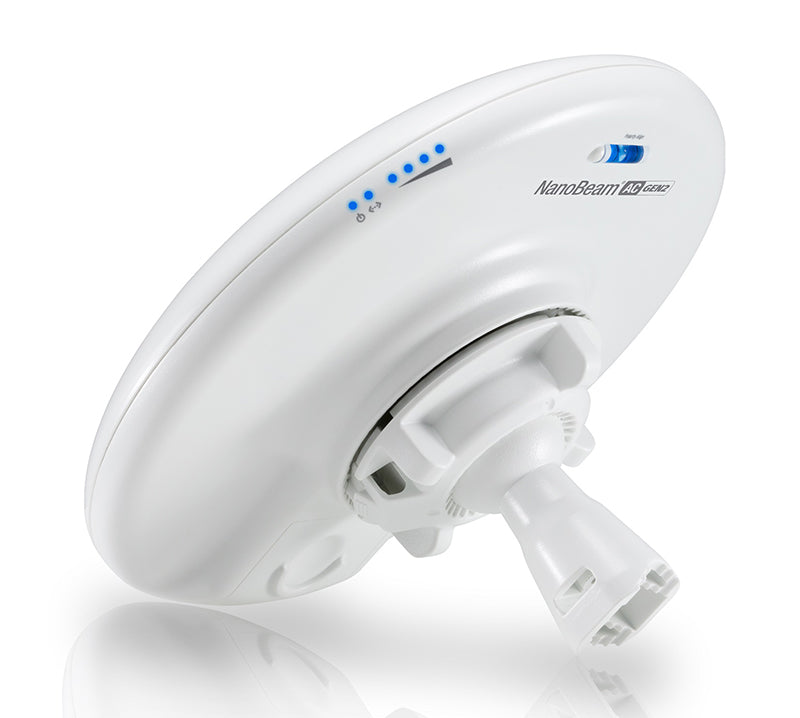

Ubiquiti 5GHz 19dBi NanoBeam AC Gen 2 Access Point/Bridge/CPE
Ubiquiti 5GHz 19dBi NanoBeam AC Gen 2 Access Point/Bridge/CPE
SKU:NBE-5AC-GEN2
Regular price
$217.00 NZD
Regular price
Sale price
$217.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Ubiquiti 5GHz airMAX AC NanoBeam Gen2 Radio with speeds up to 450Mbps and 19dBi Antenna Built in
Ubiquiti 5GHz airMAX AC NanoBeam Gen2 Radio with speeds up to 450Mbps and 19dBi Antenna Built in. The NanoBeam NBE-5AC-GEN2 directs RF energy in a tighter beamwidth for reliable high speed Point to Point wireless linking. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Features
- Dual Ethernet with PoE Passthrough
- New and Improved NanoBeam 5AC Gen 2 featuring dedicated Wi-Fi management using UMobile App for iOS and Android
- airMagic Channel Selection Tool Comprehensive Array of Diagnostic , including RF Diagnostics and airView Spectrum Analyzer
- airOS v8 is the revolutionary operating system for Ubiquiti airMAX ac products
- Perfect PTP or CPE for PTMP wireless distribution
| Details | |
|---|---|
| Manufacturer's Code | NBE-5AC-GEN2 |
| Output Power | 25dBm |
| Operating Modes | PtP / PtMP Modes |
| Frequency Range | 2412 - 2472 MHz; 5150 - 5875 MHz |
| Interfaces | (2) 10/100/1000 Ethernet Port |
| PoE In | Yes, 24V |
| Operating System | Ubiquiti airOS |
| Antenna gain dBi | 19dBi |
| Max Power consumption | 8.5W |
| Pole Diameter | 30-50mm |
| Dimensions | 189 x 189 x 125 mm |
| Details | |
|---|---|
| Power Supply | 3 Pin Clover Lead |
| Power Injector | 24V POE Injector |
| Pole Mount | Included |
| Wall Mount | Optional - Sold Separately |
| Window Mount | Optional - Sold Separately |
