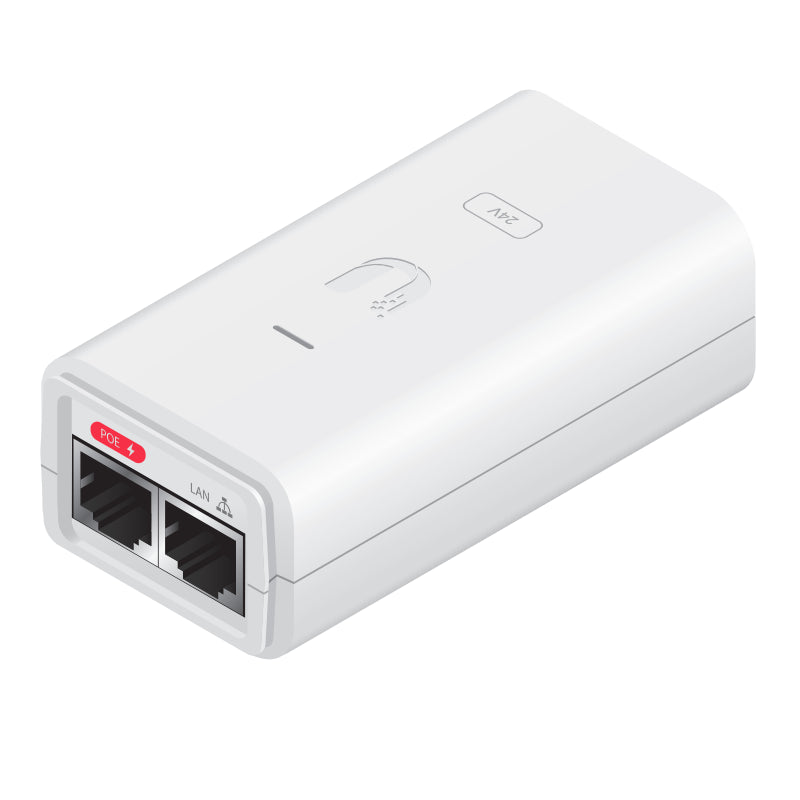

Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector

Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector

POE-24-12W-G-WH

$30.00 NZD
$30.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti 24V 12W White Gigabit PoE Injector
Ubiquiti 24V 12W White Gigabit Power over Ethernet Injector. Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable, and TOUGHCable Connectors.
Features
  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
Details
Manufacturer's Product Code POE-24-12W-G-WH
Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4 g (3.51 oz)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ? 3%
Load Regulation ? 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering No
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 ?s) Power
Peak Pulse Current 36A (10/1000 ?s) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
Details
Power Cord 3 Pin Clover Lead
Warranty Standard 12 Month RTB
