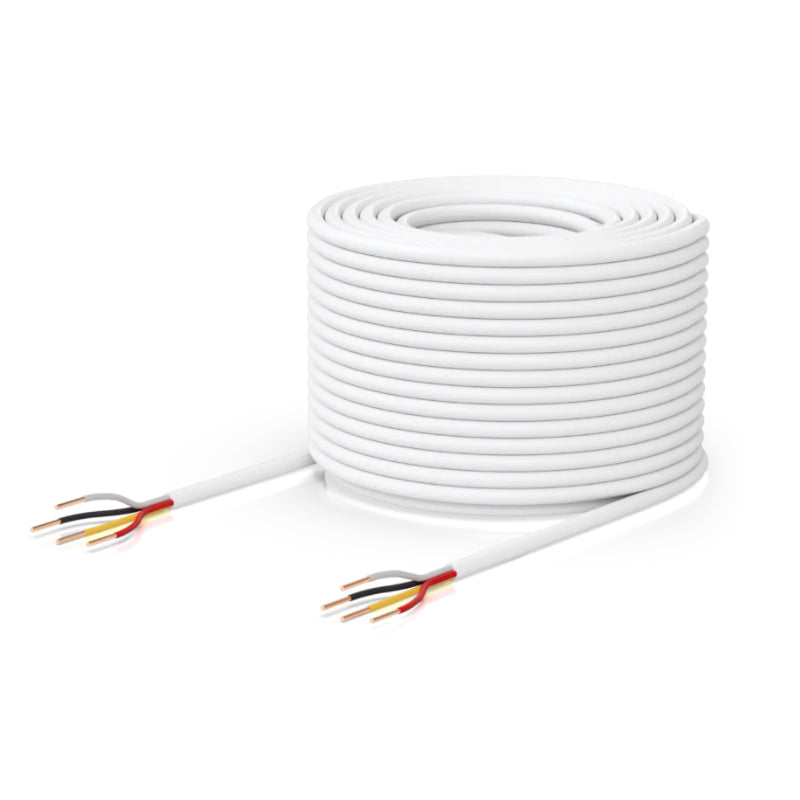

Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

UACC-Cable-DoorLockRelay-2P

$352.00 NZD
$352.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Ubiquiti 2-Pair Relay Cable Connects an electric/magnetic lock and door position sensor to an Access Hub
Features
  • Plenum-Rated
  • (2) 18 AWG conductors for an electric/magnetic lock
  • (2) 22 AWG conductors for a door position sensor
Details
Product code UACC-Cable-DoorLockRelay-2P
Weight 5.6kg
Cable Length 152.4m
Jacket OD 4.5mm
Jacket Material Thermoplastic Elastomer (TPE)
Jacket Color White
Conductor Wire Gauge 18/22 AWG
Insulation Material Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Color Black/red (18AWG), amber/white (22AWG)
Number of Conductors 4
Conductor Material Solid Bare Copper
Max Pull Tension 24.2 kgf
Min Bend Radius 56mm
Conductor DCR 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
Voltage 36V DC
Flame Rating VW-1
Current Rating 2A for 500 ft length (18 AWG), 1A for 500 ft (22 AWG)
Storage Temperature -45 to 65° C
Operating Temperature -45 to 65° C
