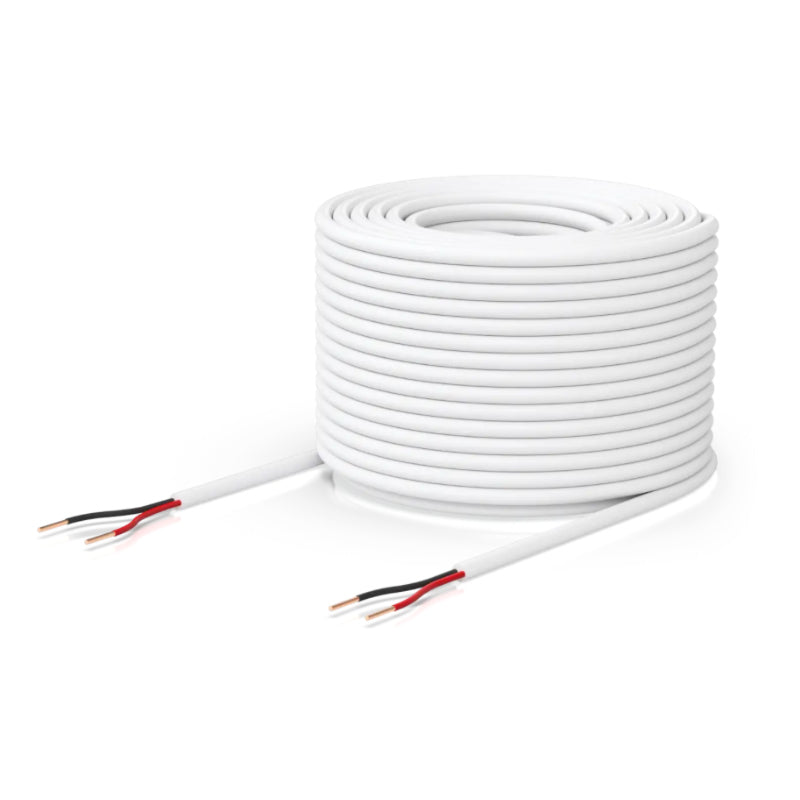

Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub

UACC-Cable-DoorLockRelay-1P

$271.00 NZD
$271.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Ubiquiti 1-Pair Relay Cable Connects an electric/magnetic lock to an Access Hub
Features
  • Plenum-Rated
  • (2) 18 AWG conductors for an electric/magnetic lock
Details
Product code UACC-Cable-DoorLockRelay-1P
Weight 4.58kg
Cable Length 152.4m
Jacket OD 4.2mm
Jacket Material Thermoplastic Elastomer (TPE)
Jacket Color White
Conductor Wire Gauge 18 AWG
Insulation Material Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Color UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Number of Conductors 2
Conductor Material Solid Bare Copper
Max Pull Tension 16.4 kgf
Min Bend Radius 33mm
Conductor DCR 23.2 ohm/km
Voltage 36V DC
Flame Rating VW-1
Current Rating 2A for 500 ft length
Storage Temperature -45 to 65° C
Operating Temperature -45 to 65° C
Details
Relay Cable 152.4m
