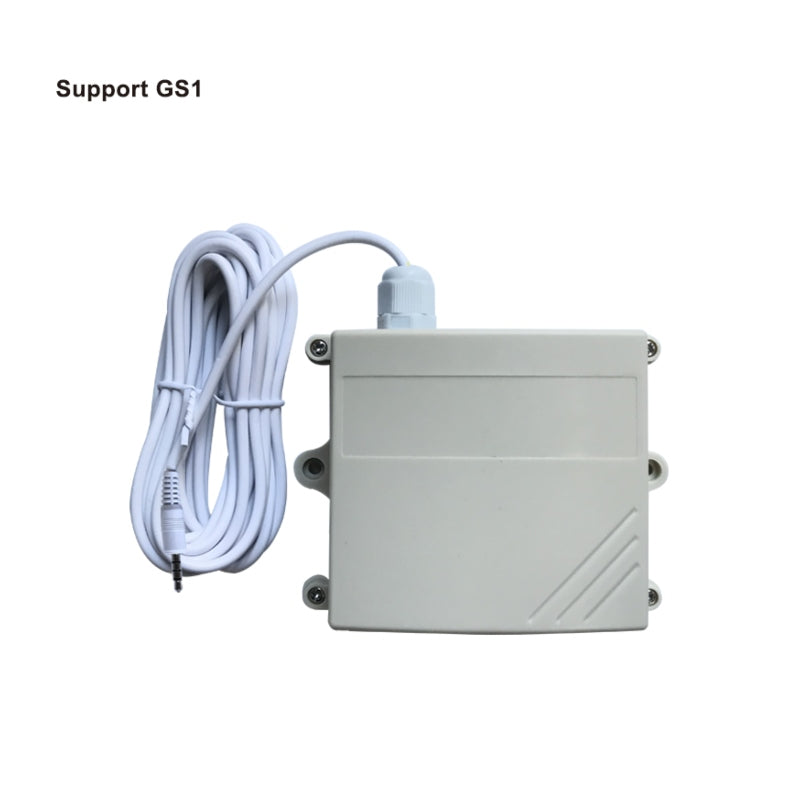

Ubibot CO2-Probe-3M-R-Audio for GS1 3 Metres
Ubibot CO2-Probe-3M-R-Audio for GS1 3 Metres
SKU:CO2-Probe-3M-R-Audio
Regular price
$115.00 NZD
Regular price
Sale price
$115.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Ubibot CO2-Probe-3M-R-Audio for GS1 3 Metres
Ubibot CO2-Probe-3M-R-Audio for GS1 3 Metres. The carbon dioxide probe is an industrial-grade probe with high integration. The data is sent from the internal chip of the probe to the computer through the modbus-rs485 interface, and multiple probe scan be connected to the bus network to realize real-time monitoring of multiple field environments. In addition, the probe can also be directly connected to the power supply to display the measurement data through the LCD screen. The probe is designed with waterproof and breathable film, with the highest waterproof level up to IP65. It has super stability and anti-interference ability, strong product protection performance and first grade lightning protection, which can be used in agricultural industry and other occasions.
It is widely used in agricultural greenhouses, intelligent buildings, workshops, warehouses, pharmacies,libraries, museums, laboratories, offices, ventilation ducts and other places where carbondioxideconcentration needs to be monitored.
. .
It is widely used in agricultural greenhouses, intelligent buildings, workshops, warehouses, pharmacies,libraries, museums, laboratories, offices, ventilation ducts and other places where carbondioxideconcentration needs to be monitored.
. .
Features
- 1. RS485 interface, communication distance up to 1200 meters.
- 2. High precision, wide range, good consistency.
- 3. Standard audio interface design, easy to plug.
- 4. Super stability and anti-interference.
- 5. Wide voltage input, DC5-12V.
- 6. Standard MODBUS RTU protocol.
- 7. Able to accurately measure CO2 concentration.
- 8. The product has strong protective performance and first grade lightning protection.
| Details | |
|---|---|
| Model | CO2-Probe-3M-R-Audio |
| Working Voltage | DC5V |
| Measuring Range | 0~10000ppm |
| Measuring Accuracy | CO2?±?30ppm+3%? Accuracy(max) 0.1ppm |
| Output Interface | RS485 |
| Communication Protocol | MODBUS RTU |
| Communication Address | 0xC7 |
| Baud Rate | 1200 bit/s,2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s (optional) |
| Standby Current | 20mA |
| Interface Type | Audio Interface |
| Dimensions | 65*46*29mm |
| Cable Length | 3 Metre |
| Details | |
|---|---|
| Contains | 1 x CO2-Probe-3M-R-Audio |
