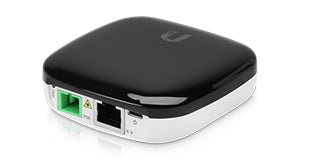

U-Fiber Loco 1 Gbps GPON Subscription Unit

.. Sporting a sleek industrial design, the UFiber loco is a robust, high performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power. Features The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE Up to 128 UFiber loco devices can be connected to a single GPON port supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices Details Manufacturer's Code UF-LOCO Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04") Weight 77 g (2.72 oz) Networking Interface Speeds (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream, (1) GbE LAN, 10/100/1000 Mbps Management Interface In-Band Ethernet/PON Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm, RX: -28 dBm to -8 dBm Power Method Micro-USB: 5V, 1A, 24V Passive PoE (Pins +4, 5; -7, 8) Power Supply Micro-USB Power Adapter*: 5V, 1A Max. Power Consumption 3.5W supported Voltage Range 4.7 to 5.3V Processor Specs MIPS32, 240 MHz Memory Information 128 MB DDR3 Buttons (1) Reset Operating Temperature - Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC support Details Power Supply included Micro-USB Power Adapter Warranty Standard 12 Month RTB

Key features

• 10 to 45° C (14 to 113° F)
• U-Fiber Loco 1 Gbps GPON Subscription Unit U-Fiber Loco 1 Gbps GPON Subscription Unit
• Low-Cost Ubiquiti UFiber Loco GPON Optical Network Unit (ONT)
