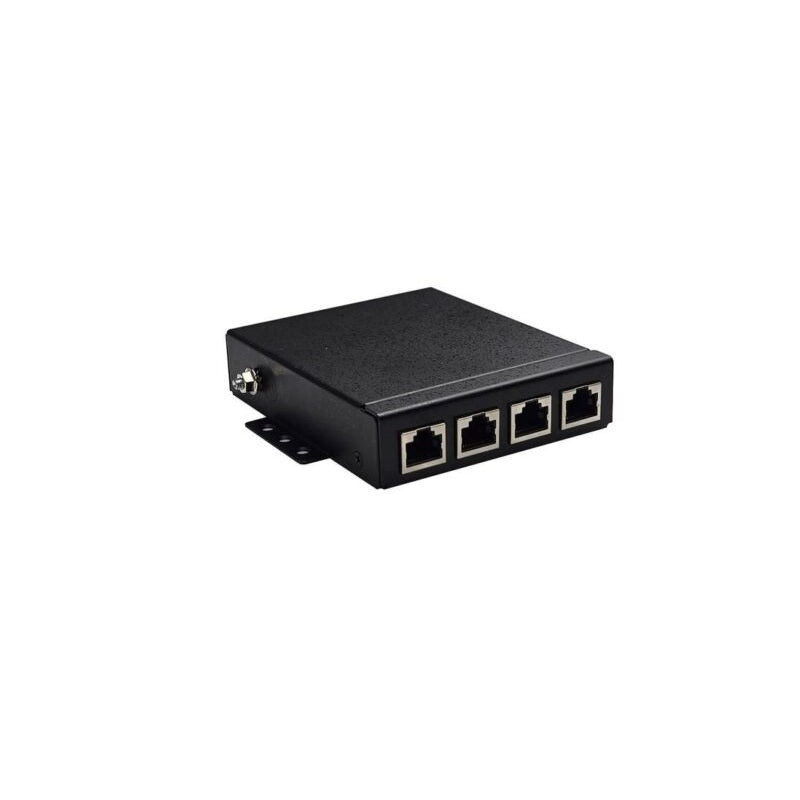

Tycon Systems 10G Ethernet 4 Port PoE Lightning/Surge Suppressor Protector

The Tycon Systems TP-ESP-10Gx4 is a high-performance Ethernet surge protector engineered to actively shield sensitive equipment from lightning strikes and power surges caused by grid fluctuations. Designed for demanding applications, it delivers robust protection up to 10KA and supports Ethernet speeds up to 10Gbps, making it ideal for high-speed, high-value network installations. Furthermore, it seamlessly integrates with IEEE 802.3af/at/bt PoE standards, ensuring wide-ranging compatibility.

To further enhance reliability, the Tycon Systems TP-ESP-10Gx4 features a rugged, full-metal body that suppresses electromagnetic interference (EMI) and withstands harsh environments. It also includes built-in mounting feet and a dedicated ground wire for easy and secure installation. As a result, it performs exceptionally well in both indoor and outdoor settings—especially when installed in a weatherproof enclosure.

Moreover, this surge protector supports 10/100/1000/10,000 Mbps PoE systems up to 58V and functions equally well in data-only (non-PoE) networks. Each of its four protected ports delivers Common Mode and Differential Mode protection across all eight Ethernet wires. Thanks to its non-polarized design, users can freely assign ports—each port on one side directly connects to the matching port on the other side.

In addition, a ground wire is included for integration with your existing earth ground system. For flexible installation options, DIN rail adapters are also provided.

To maximize protection, install the Tycon Systems TP-ESP-10Gx4 as close as possible to the equipment you’re safeguarding. For outdoor applications, Tycon Systems® offers a compact weatherproof enclosure, specifically designed to house this unit and maintain reliable protection in harsh conditions.
