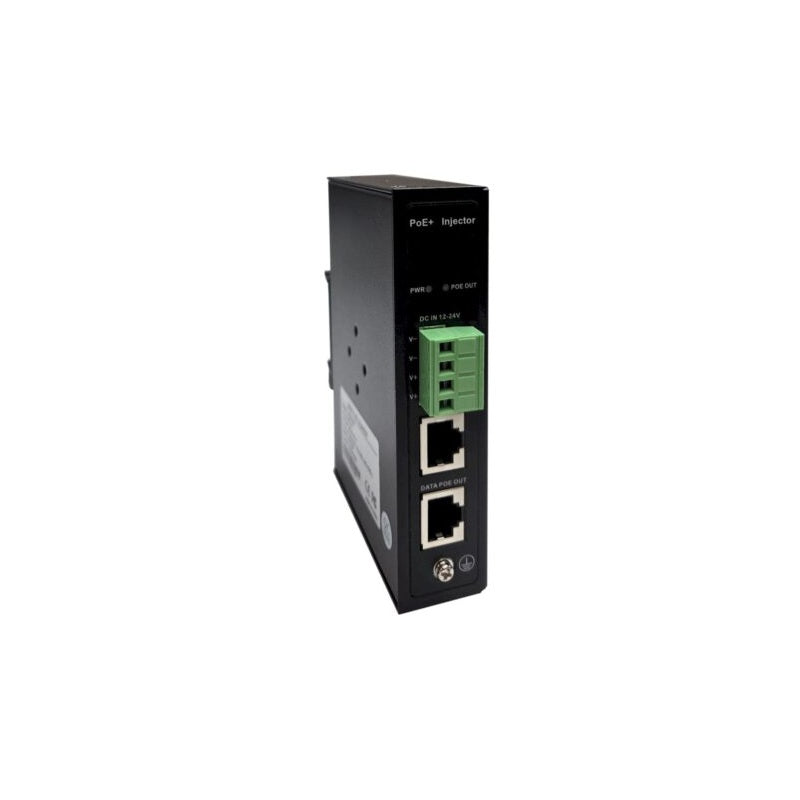

Tycon Systems 10-30VDC In, 802.3at 54V 30W PoE+ Out, DIN Mountable 10G PoE Injector

Tycon Systems 10-30VDC In, 802.3at 54V 30W PoE+ Out, DIN Mountable 10G PoE Injector

TP-DC-12AT30-10G

$68.00 NZD
$68.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Tycon Systems 10G PoE Injector, 10-30VDC IN, 802.3at 30W output, -20C to +60C operating temp, PoE Pinout V+ 4,5 V- 7,8
The Tycon Systems TP-DC-12AT30-10G is a DC-to-DC PoE+ inserter designed for reliable performance in battery-powered systems, accepting a 12-24VDC input. It supports data speeds from 10/100Mb to 10G, making it ideal for modern, high-speed networks. The durable metal enclosure comes with brackets for easy DIN rail or wall mounting.

Built-in protections safeguard against overloads, overheating and Low Voltage Detect (LVD). With an operating temperature range of -20°C to +60°C, this inserter ensures dependable operation in challenging environments.

Applications
- Solar Battery Systems
- Vehicular and Marine Applications
- Wireless Equipment
- Security Systems
Features
  • 12-24VDC to 54VDC Efficient DCDC Converter
  • 802.3at 54V 30W Class 4 PoE+ Output
  • 10/100/1000Mb/2.5G/5G/10G Compatible
  • DIN Rail or Wall Mount (Brackets Included)
  • Over Current, Over Temperature and LVD Protections
  • Metal Housing, Removeable Wire Terminal Connector
  • Wide Temperature Operation: -20C to +60C
Details
Manufacturer's Code TP-DC-12AT30-10G
Input Voltage @ Current 11-29VDC @ 3A
Input Connector Removeable Wire Terminal (up to 12AWG)
Output Power Over Ethernet (PoE) 54VDC 30W, 802.3af/at Class 4, PoE+
PoE Pinout 1,2(V+) 3,6(V-)
Output Connectors Shielded RJ45 for Data IN and PoE OUT
Ethernet Speed 10/100/1000Mb/2.5G/5G/10G
Efficiency 80% Min
LED Function Power (Green) = Power is Stable, PoE Out (Green) = PoE Out is delivering PoE Power to a device
Protections Over Current, Overload, Over Voltage, Anti-Interference, Low Voltage Detect (LVD)
International Standards FCC Class B EN55032 Class B, EN 61000-3-2, EN 62368-1
Operating Temperature -20 to +60°C ( -4F to +140°F)
Operating Humidity (RH) 5% - 80% non-condensing
Storage Temperature -40 to +70°C (-40 to +158°F)
Dimensions (L x W x H) 119 x 85.5 x 28mm ( 4.7 x 3.4 x 1.1” )
Weight 380g (13.4oz)
Details
Included (1) TP-DC-12AT30-10G
Mounting Hardware DIN Rail or Wall Mount (Brackets Included)
