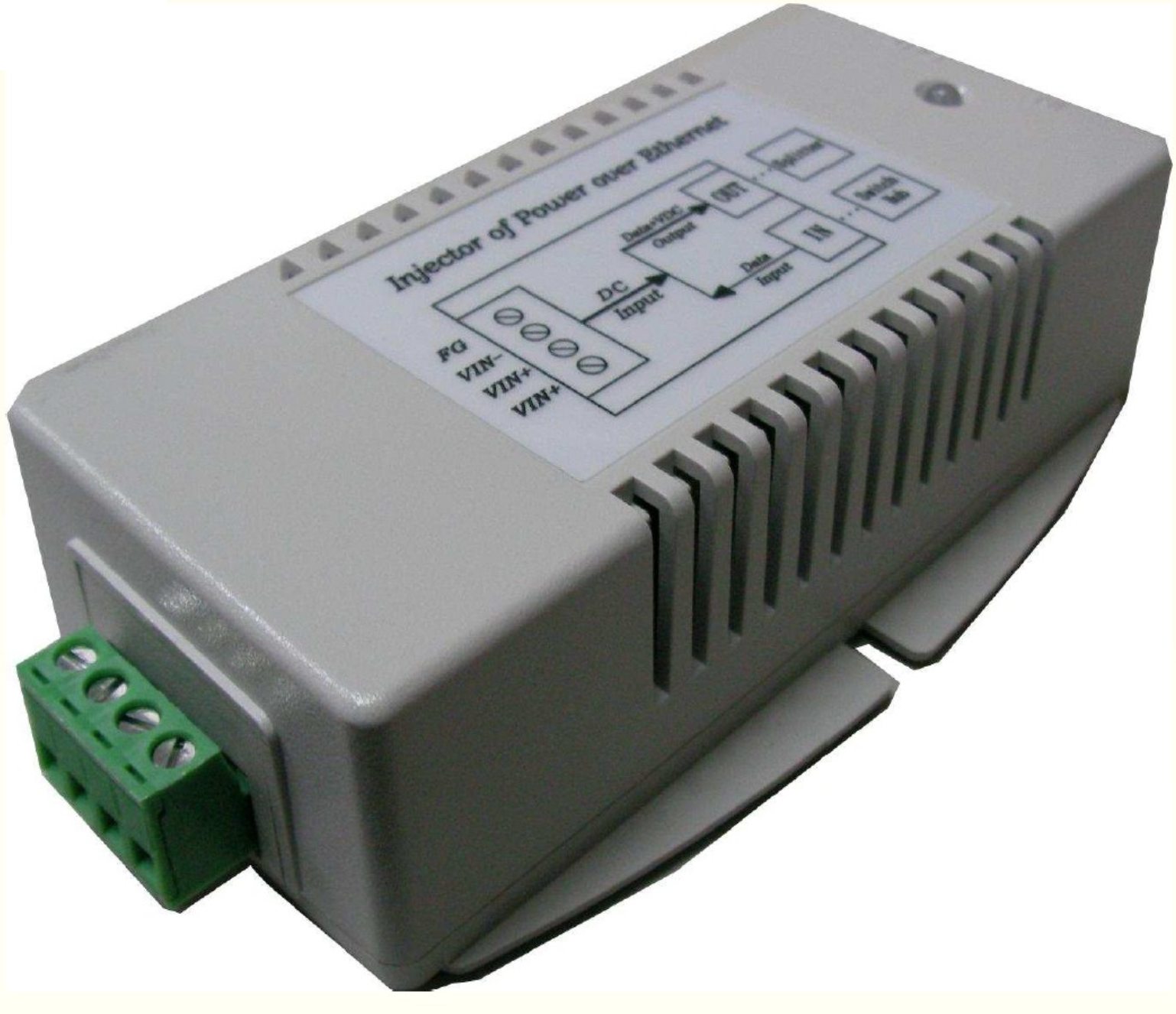

Tycon Power TP-DCDC-4856G-VHP DC to DC PoE Converter

Tycon Power TP-DCDC-4856G-VHP DC to DC PoE Converter

TP-DCDC-4856G-VHP

$285.00 NZD
$285.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Tycon Power 36-72VDC in, 8 wire 56VDC Passive POE Output - TP-DCDC-4856G-VHP
The Gigabit compatible TP-DCDC4856G-VHP is a special very high power DC to DC converter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Features
  • Input Voltage 48VDC (36-72VDC)
  • 8 wire 56VDC Passive POE Output
  • High Power Output to 70W
  • Dual DC Inputs for Connecting 2 Power Sources
  • Gigabit Data Thruput
  • Low self consumption power (<2W)
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range
Details
Manufacturer's Product Code TP-DCDC-4856G-VHP
DC Input Voltage 36VDC to 72VDC
DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage 56VDC
PoE Method Passive ( 8 Wire , 4 Pair )
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.25A
Output Power (max) 70W
Self Consumption Power 2W
Ethernet Speed 1Gbps
Interfaces (2) RJ45 Female; (1) Terminal Block
Dimensions (LxWxH) 125 x 75 x 38mm
Details
Warranty Standard 12 Month RTB
