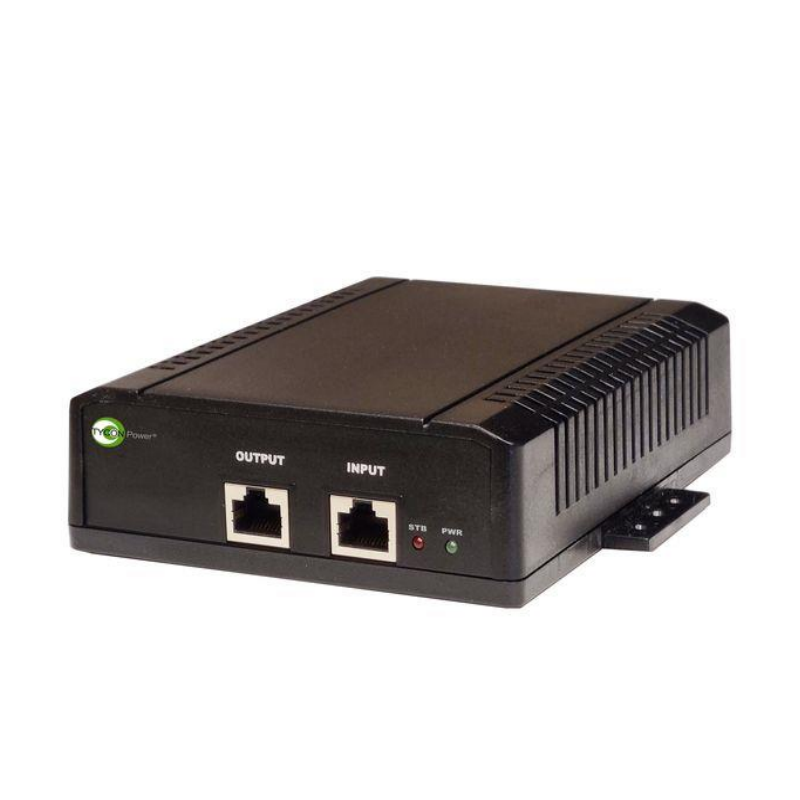

Tycon Power Systems TP-DCDC-A2456GD-BT 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W

Tycon Power Systems TP-DCDC-A2456GD-BT 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W

TP-DCDC-A2456GD-BT

$526.00 NZD
$526.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Tycon Power Systems TP-DCDC-A2456GD-BT 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W
Tycon Power Systems TP-DCDC-A2456GD-BT 22-35VAC or VDC Input, 56V 802.3bt Gigabit PoE Output, 90W.The TP-DCDC-A2456GD-BT is a 5Gbps high power DCDC converter and PoE injector that accepts 22-35VAC or VDC input. It features a wide operating temperature range (-40 to +70C) and a high power 802.3bt 90W output.

The unit has dual AC/DC inputs for maximum flexibility. The green DC connector accepts wires up to 12AWG. The “FG” input is used to provide chassis or earth ground.

The device is fan-less and uses natural air flow for cooling. It comes with DIN rail adapters to provide mounting to a standard DIN Rail commonly used in industrial installations. It can also be wall mounted.
Features
  • 802.3bt PoE from Legacy 24VAC Power Sources
  • 24VDC Remote Power Systems
  • IEEE802.3bt Industry Standard Device Power from Batteries
  • PoE Lighting Applications
  • 22-35VAC/VDC Input, 802.3bt 90W Output
  • Industrial Temperature Range: -40 to +70C
  • Up to 5Gigabit Data Passthru with Surge Protection
  • DIN Rail Mounting (Adapters Included)
Details
Product Code TP-DCDC-A2456GD-BT
Input Voltage 22 to 35VAC 50/60hz or 22 to 35VDC
Input Current 4.42A @ 24VAC IN (Full Load), 4.40A @ 24VDC IN (Full Load)
Output Voltage IEEE802.3bt 56VDC; Load Reg = 5%, Line Reg = 1%
Output Current / Max Watts 1.6A / 90W
Ripple & Noise 1%
Efficiency 80% 22-35V Input
Protections Short Circuit, Reverse Voltage
Over Current Protection 802.3bt Limits ; Auto Recover
Low Voltage Detect (LVD) Device with stop drawing all current when input voltage drops below 33.2VDC
Misc Protections Short Circuit, Reverse Voltage
Data PassThrough 10/100/1000/5000Mbps ; Gigabit
Data Protection Pin to Pin (1-2, 3-6, 4-5, 7-8), Clamp Voltage: 3.3V, ESD, IEC61000-4-2: +/- 30KV contact and air, EFT, IEC61000-4-4: 40A (5/50us), Lightning, IEC61000-4-5: 15A (8/20us)
MTBF 135,326 Hrs
Safety Standards TUV EN62368-1
EMC Standards FCC Class B ; EN55032 Class B
Connections Removable Wire Terminal
Wire Size 12AWG Max
LED Function Green Power LED = Valid 802.3bt Detection, Red STB LED = Input Power OK
Mounting Wall Mount or DIN Rail (Adapters Included)
Operating Temperature -40C to +70C (-40F to 158F)
Humidity (RH) 5% - 90% Non-Condensing
Dimensions (LxWxH) 140 x 150 x 40 mm (5.5” x 5.9” x 1.6”)
Weight 0.66kg (1.45lb)
Details
Included 1 x DCDC PoE convertor, Removable Wire Terminal, DIN Rail Adapter
