Tycon Power

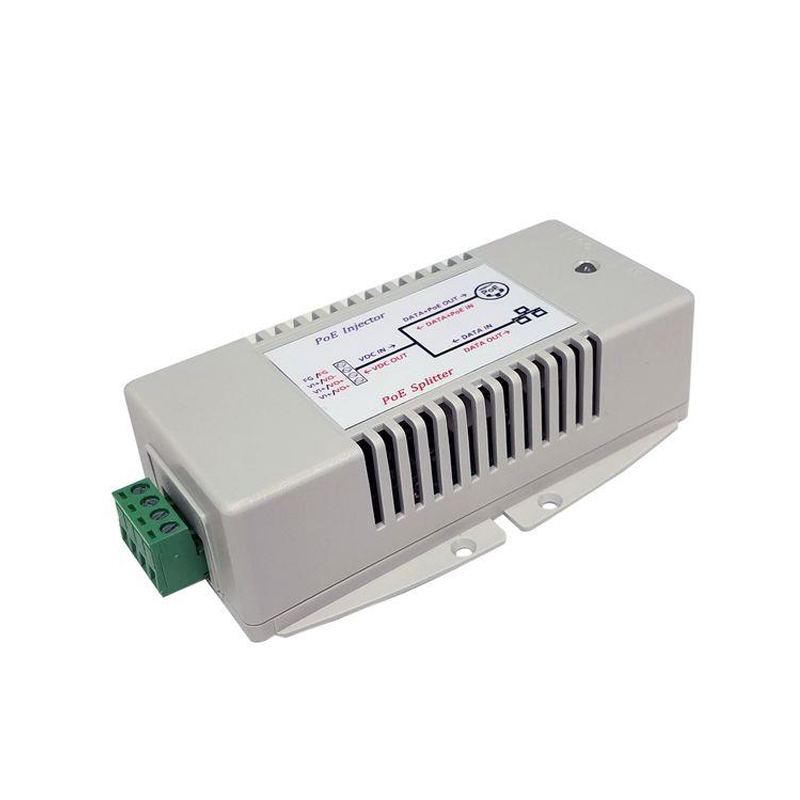

Tycon Power Systems POE-INJ/SPLT-G Gigabit PoE Inserter/Splitter 12-65VDC 140W Out

Tycon Power Systems POE-INJ/SPLT-G Gigabit PoE Inserter/Splitter 12-65VDC 140W Out

POE-INJSPLT-G

$79.00 NZD
$79.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Tycon Power Gigabit Passive PoE Injector/Splitter. Injects or splits 12-65VDC power on 4 pairs up to 140W 2.5A
Tycon Power Systems POE-INJ/SPLT-G Gigabit PoE Splitter 12-65VDC 150W Out. The POE-INJ/SPLT-G is a high quality, high power shielded passive power over Ethernet inserter/splitter that is compatible with data speeds up to one gigabit. The DC connector is a wire terminal type power connector for universal application. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins 1,2,4,5(+) and 3,6,7,8(-). The unit can handle up to 2.5A continuous power so it is perfect for carrying up to 140W @ 56VDC over CAT5/CAT6 cable. See Datasheet for use cases.

The inserters/splitters are perfect for remotely powering devices such as PoE Switches. POS Terminals, Kiosks, LED Lighting, Thin Clients, PTZ Cameras, Wireless Radios, Small Cells, 802.11AC Access Points, Sensors, etc. Multiple devices can be powered over a single CAT5/CAT6 cable.
Features
  • Very High Power Shielded Design (uses all 4 pairs) 140W
  • 10/100/1000Mb Compatible
  • Wire Terminal DC Power Connector
  • 12VDC to 65VDC Power Over Ethernet
  • Use as Injector or Splitter
  • Power On LED indicator
  • I.T.E. Power Supply, UL Listed
  • supports Ubiquiti airFiber Radios
Details
Product Code POE-INJ/SPLT-G
DC Input Voltage Range 12V to 65VDC
Data Speeds 10/100/1000Mb
Maximum POE Current 2.5A
DC Connector Wire Terminal (up to 12AWG Wire)
LED Function Power On = Red, Current >80mA = Green
Operating Temperature -40°F to 158°F (-40°C to +70°C)
Operating Humidity 0 to 99% RH
Size 4.9 x 2.8 x 1.5” (125x72x38mm)
Weight 3.5oz (100g)
Details
Included 1 x Ethernet inserter/splitter and DC Plug
