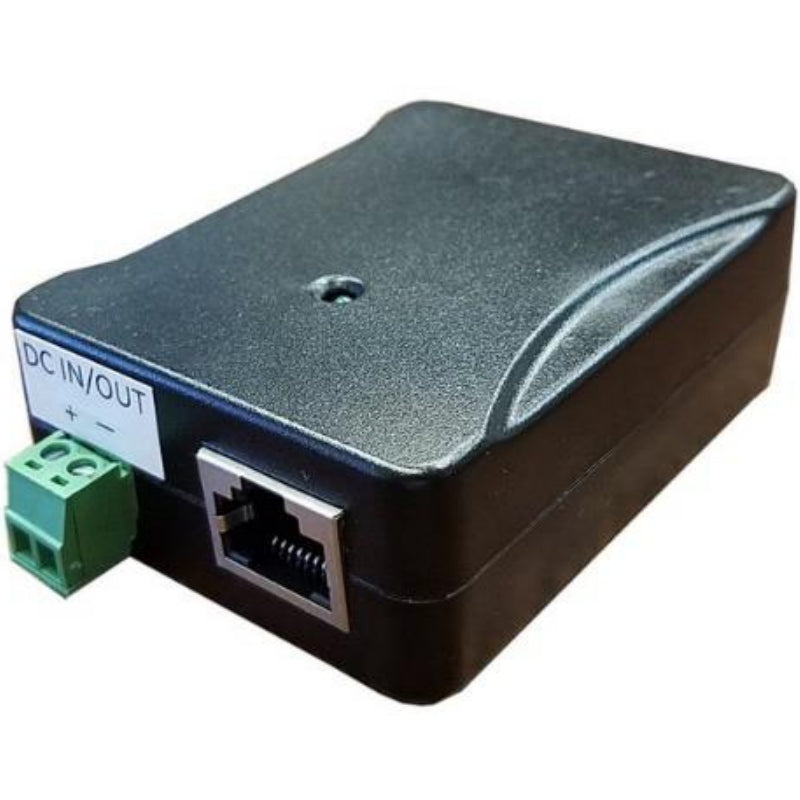

Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter

Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter

POE-INJ-1000-WTx

$33.00 NZD
$33.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Tycon Power Systems POE-INJ-1000-WTx Gigabit Reverse 8 Wire PoE Injector/Splitter
The POE-INJ-1000-WT(x) are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m.

Gigabit PoE Injector/Splitter with LED for power. Injects or splits DC power on all 8 wires. 1,2,7,8(-) and 3,6,4,5(+) Wire terminal connector. Black Color. 2.25A.
Features
  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mb Compatible
  • Removeable Wire Terminal Connector
  • 5VDC to 58VDC Power Over Ethernet
  • Power On LED indicator
Details
Manufacturer's Product Code POE-INJ-1000-WTx
DC Input Voltage 5V to 58VDC
Data Speeds 10/100/1000Mb
DC Input Connector Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
Maximum PoE Current 2.25A 130W Max
RJ45 PoE Pinout 3,6,4,5 (V+); 1,2,7,8 (V-)
Dimensions (LxWxH) 71 x 53 x 24mm
Weight 65g
Details
Included 1 x DCDC PoE Converter and Compression Wire Terminal
