Tycon Power

Tycon Power Systems POE-INJ-1000-WT Gigabit 8 Wire PoE Injector/Splitter airFiber

Tycon Power Systems POE-INJ-1000-WT Gigabit 8 Wire PoE Injector/Splitter airFiber

POE-INJ-1000-WT

$36.00 NZD
$36.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

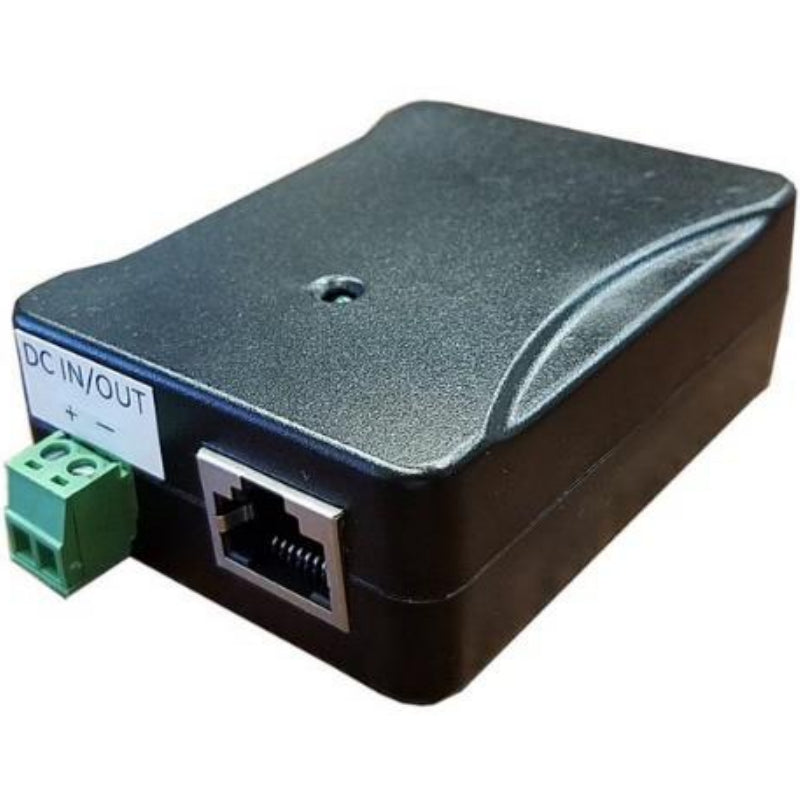

Tycon Power Systems POE-INJ-1000-WT Gigabit 8 Wire PoE Injector/Splitter for airFiber
The Tycon Power Systems POE-INJ-1000-WT(x) are shielded passive 8 wire power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m.

Gigabit PoE Injector/Splitter. Injects or splits DC power on all 8 wires. 1245(+) 3678(-)Black color. Wire terminal connector. 2.25A.
Features
  • High Power Shielded Design (uses all 4 pairs)
  • 10/100/1000Mb Compatible
  • Removeable Wire Terminal Connector
  • 5VDC to 58VDC Power Over Ethernet
  • Power On LED indicator
  • supports Ubiquiti airFiber
Details
Manufacturer's Product Code POE-INJ-1000-WT
DC Input Voltage 5V to 58VDC
Data Speeds 10/100/1000Mb
DC Input Connector Removeable Wire Terminal Connector – Maximum Wire Size 14AWG
Maximum PoE Current 2.25A 130W Max
RJ45 PoE Pinout 1,2,4,5 (V+); 3,6,7,8 (V-)
Dimensions (LxWxH) 71 x 53 x 24mm
Weight 65g
Details
Included 1 x DCDC PoE Converter and Compression Wire Terminal
