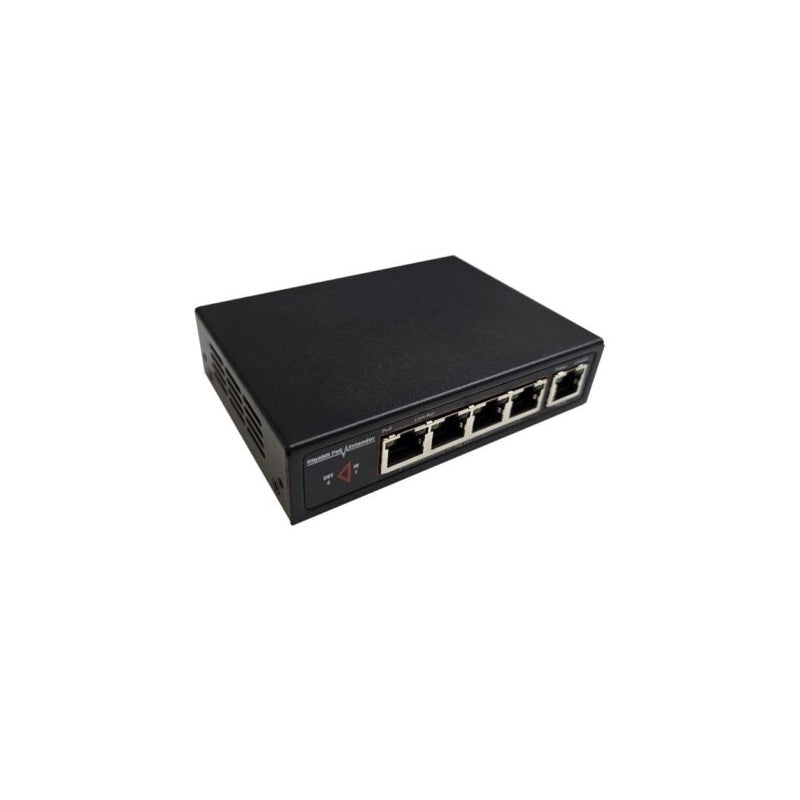

Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender

Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender

POE-EXT-GDx4-AT

$133.00 NZD
$133.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Tycon Power Systems POE-EXT-GDx4-AT Indoor Gigabit 4 Port 802.3at PoE Extender
The Tycon Power Systems POE-EXT-GDx4-AT is a durable, high-power Gigabit Ethernet PoE extender that lets you stretch Ethernet connections beyond the usual 100-meter limit. You can link multiple units to extend Ethernet and PoE up to 300 meters using CAT5 or CAT6 cables. These units are powered by PoE, so no extra power source is needed. The input is compatible with 802.3bt 60W or 90W PoE injectors and the output provides four 802.3at 25W PoE Ports.

Built for indoor use or outdoor use inside a weatherproof enclosure, the units have tough, powder-coated metal enclosures. They operate reliably in temperatures from -20°C to +60°C.

Note: Input power must be at least 10W higher than total load across all 4 output ports
Features
  • 802.3bt 90W IN, 4 802.3at 25W OUT
  • 10/100/1000Mb Compatible
  • Easy Plug and Play Operation
  • Extends PoE / Ethernet an additional 100m
  • Auto Link Speed, Duplex and Crossover
  • Wall Mount Brackets included
Details
Product Code POE-EXT-GDx4-AT
PoE Input 802.3bt or 54V 4 Pair Passive, 90W
PoE Input Pinout 3,6,4,5(+) 1,2,7,8(-)
PoE Output 802.3af or 802.3at Class 4
PoE Output Pinout 1,2(+) 3,6(-) Up to 25W
Total PoE Output Power 72W Max with 90W input
Data Speeds 10/100/1000Mb
Self Consumption Power 2.0W Typ
Operating Temperature -4°F to 140°F (-20°C to +60°C)
Operating Humidity 0 to 90% RH Non-Condensing
Size 4.7 x 3.3 x 1.1” (119x85x28mm)
Weight 9.9oz (280g)
Details
Mounting Hardware Wall Mount kit included
Power Supply Sold Separately
