Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender

Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender

POE-EXT-GD-HP

$219.00 NZD
$219.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

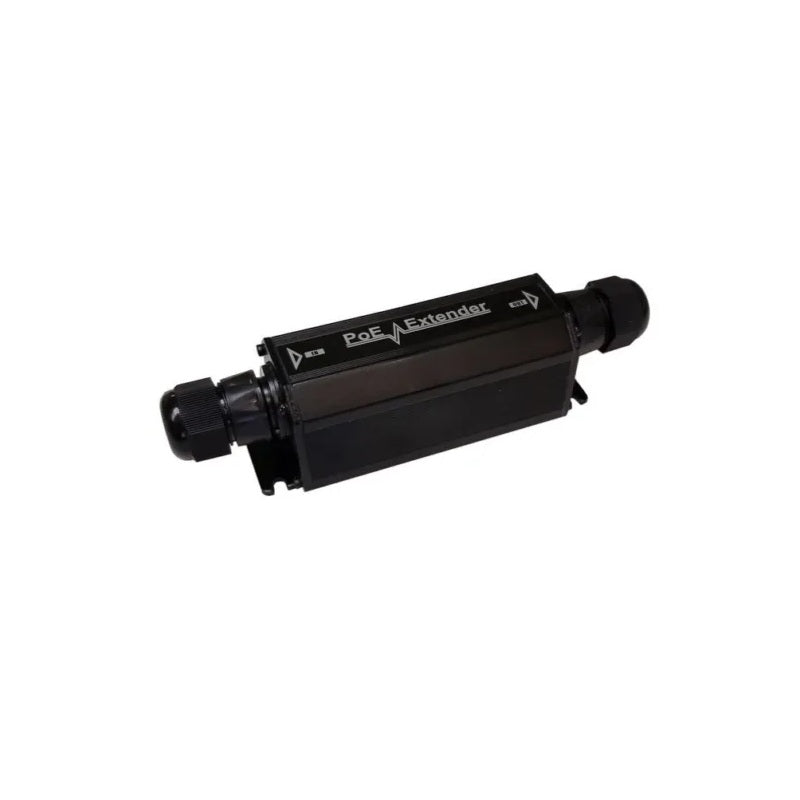

Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender
Tycon Power Systems POE-EXT-GD-HP Outdoor Gigabit 802.3at POE Extender.

The Tycon Power Systems POE-EXT-GD-HP is a high quality, high power, shielded Gigabit Ethernet and PoE extender to be able to extend Ethernet beyond the standard 100m limit. By using multiple units, Ethernet and PoE can be extended up to 300m over CAT5/CAT6 cables. The units are powered by PoE so no additional power source is required. Units can accept Mode A (Pins 1,2,3,6) or Mode B (Pins 4,5,7,8) PoE: 802.3af, 802.3at or 48V Passive PoE.

The rugged outdoor weatherproof enclosures are powder coated aluminum and are rated to IP66. The units meet outdoor temperature ratings of -25C to +55C.

Perfect for powered Wireless Equipment, IP Telephones, Security Applications, Sensor Equipment or PoE Lighting over long distances.
Features
  • 802.3af / 802.3at Compatible
  • 10/100/1000Mb Compatible
  • Weatherproof – Outdoor rated IP66
  • Easy Plug and Play Operation
  • Extends PoE an additional 100m
  • Auto Link Speed, Duplex and Crossover
Details
Product Code POE-EXT-GD-HP
PoE Input 802.3af / at / 44 to 57V Passive
PoE Input Pinout 1,2(-) 3,6(+) or 7,8(-) 4,5(+)
PoE Output 802.3af or 802.3at Class 4
PoE Output Pinout 1,2(+) 3,6(-) Up to 25W
Data Speeds 10/100/1000Mb
Self Consumption Power 2.0W Typ
Operating Temperature -25°C to +55°C
Operating Humidity 0 to 100% RH
Size 185x45x45mm
Weight 240g
Details
Includes (1) POE-EXT-GD-HP Outdoor PoE Extender
