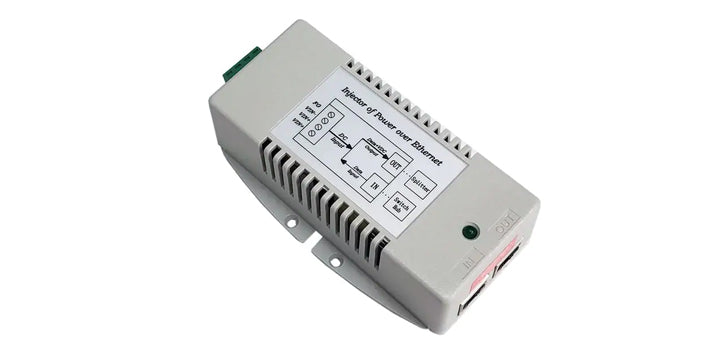

Tycon Power 36-72V IN, 24V 35W Gigabit Passive POE DCDC Convertor

Tycon Power 36-72V IN, 24V 35W Gigabit Passive POE DCDC Convertor

TP-DCDC-4824G-HP

$161.00 NZD
$161.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Tycon Power 36-72V IN, 24V 35W Gigabit DCDC Converter Passive PoE Injector
Tycon Power Systems TP-DCDC-4824G-HP DC to DC Converter Passive PoE Injector. The TP-DCDC-4824G-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W.
Features
  • Input Voltage +/- 48VDC (Range +/- 36-72VDC)
  • Isolated Input to out
  • Shielded and Surge Protected
  • Passive PoE Output 24VDC
  • Dual Inputs for Connecting 2 Power Sources
  • Integrated 10/100/1000MB PoE Inserter
  • High Power up to 35W
  • Low Self Consumption Power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact Size – Maximize Available Space
  • I.T.E. Power Supply, UL Listed
  • 48V Battery Systems, Vehicle Applications
  • Wireless Access Points and Client Devices
  • IP Phone and Security Camera Systems
Details
Manufacturer's Product Code TP-DCDC-4824G-HP
DC Input Voltage +/- 36 to 72VDC
DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage 24V Passive
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.5A
Output Power (max) 35W
Self Consumption Power 1W
Efficiency (min) 75%
Line Regulation 1%
Load Regulation 5%
Ripple 1%
Noise 1%
EMC Standards FCC Class B EN55022 Class B
Safety Standards UL1950, CSA 22.2 &TUV EN60950
Operating Temp -30 to +60°C (-22 to +140°F)
Operating Humidity 5% - 90%
Storage Temp -40 to +80°C (-40 to +176°F)
Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”)
Weight 300g (10.6oz)
Warranty 1 Year
Details
Included 1 x DCDC PoE Injector with DC Input Connector
