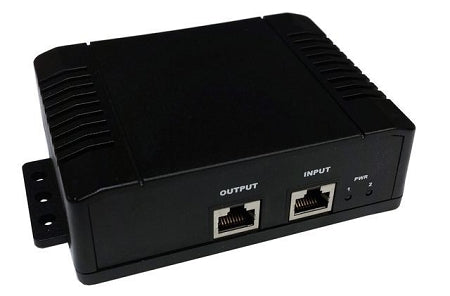

Tycon Power 10-60VDC in Dual Channel 802.3af/at Gigabit PoE DC to DC Convertor Adaptor

Tycon Power 10-60VDC in Dual Channel 802.3af/at Gigabit PoE DC to DC Convertor Adaptor

TP-DCDC-1256GD-VHP

$527.00 NZD
$527.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Tycon Power 10-60VDC in Dual Channel 802.3af/at Gigabit PoE DC to DC Convertor Adaptor
Tycon Power 10-60VDC Dual DC Inputs 802.3af/at/bt Gigabit PoE DC to DC Convertor Adaptor . The Tycon Power Gigabit compatible TP-DCDC-1256G-VHP and TP-DCDC1256GD-VHP area special very high power DC to DC converters / POE inserters designed especially for Ubiquiti airFiber antenna systems and other systems that require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair).

The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input and output is isolated so they work in a negative ground of positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The units come complete with a DIN Rail mounting kit for mounting to a standard DIN rail.
Features
  • Input Voltage 10VDC to 60VDC
  • 8 wire (4 Pair) 56VDC High PoE 802.3bt Output
  • High Power Output to 70W
  • Dual DC Inputs for Connecting 2 Power Sources
  • Gigabit Data Throughput
  • Low self consumption power (<2W)
  • Short Circuit, Over Current and Reverse/Over Voltage Protection
  • Industrial Temperature Range to 70C
  • Ubiquiti airFiber™ Radios
  • Axis Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
  • High PoE 4 Pair Powered Cameras and Radio’s
  • Isolated so they work in a negative ground of positive ground system
Details
Manufacturer's Product Code TP-DCDC-1256G-VHP
Input Voltage +/- 10VDC to 60VDC
Input Connector Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage IEEE 802.3at/bt (4 Pair) Compatible
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.25A
Output Power (max) 70W
Self Consumption Power 2W
Efficiency (min) 80% Min (10VDC to 60VDC Input)
Line Regulation, Ripple, Noise 1%
Load Regulation 5%
EMC Standards FCC Class B EN55022 Class B
Safety Standards CSA 22.2 &TUV EN60950
Operating Temp -40 to +70°C (-40 to +158°F)
Operating Humidity 5% - 90%
Storage Temp -40 to +85°C (-40 to +185°F)
Dimensions (LxWxH) 90 x 118 x 40mm (3.5 x 4.6 x 1.57”)
Weight 335g (11.8oz)
Details
Warranty Standard 12 Month RTB
